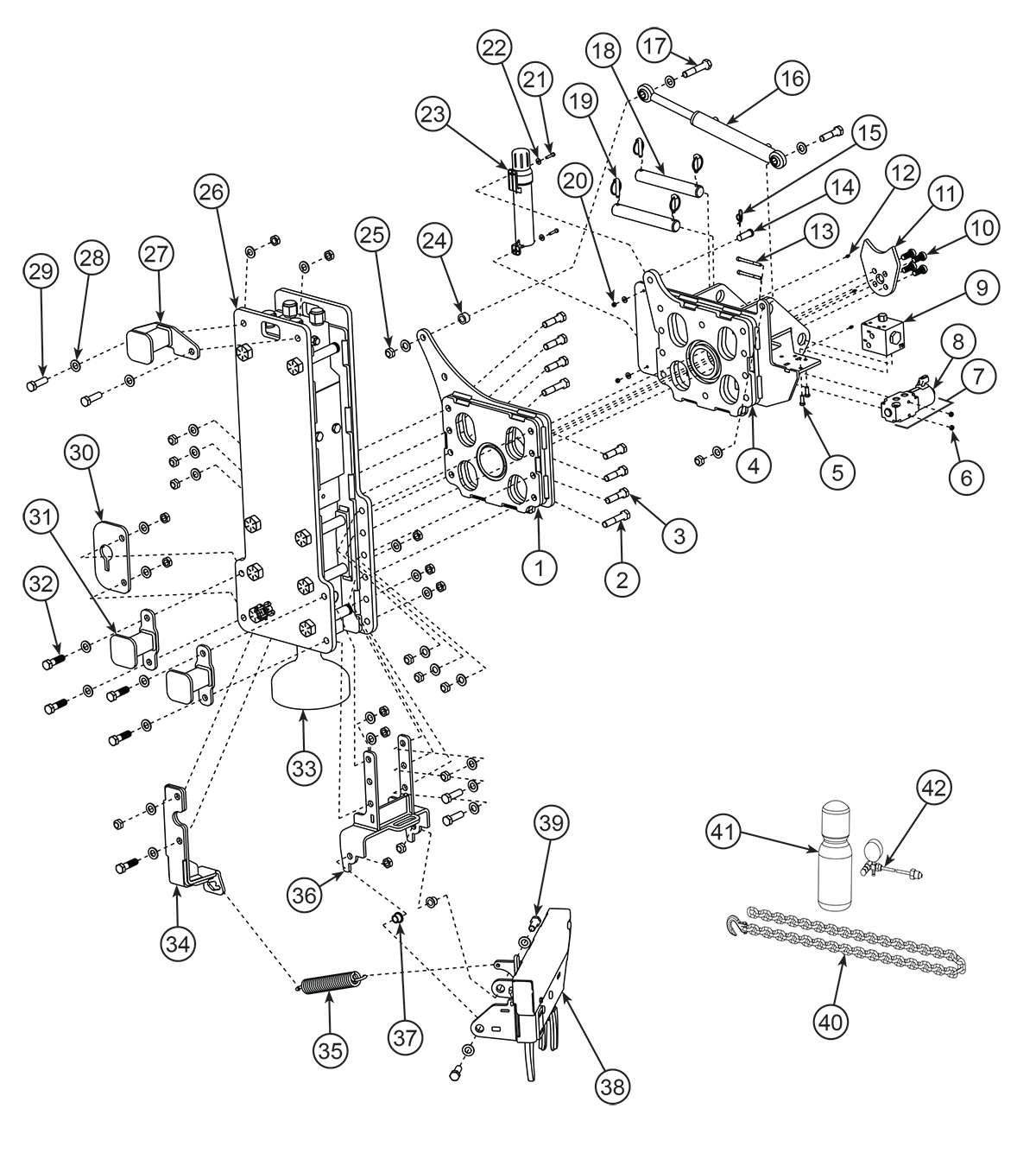

Hornet T7 with Grapple & Tilt – Backhoe & Excavator Mount (SN 1000+) - Main Assembly
Assembly:
Select plus (+) to zoom in, minus (-) to zoom out, or full-screen button (four outward-pointing arrows) to enlarge the image to full screen.
Prices are shown in USD
| Part | Price | Quantity | |
|---|---|---|---|
|
Tilt Plate
Includes 35220
210065S
|
$1,206.00 | ||
|
Bolt (3/4"-10 x 3.75", Gr. 8)
216011
|
$6.57 | ||
|
Bolt (3/4"-10 x 3", Gr. 8)
206089
|
$4.69 | ||
|
Intermediate Weldment
Includes decals & safety signs.
210045S
|
$574.00 | ||
|
Bolt (3/8"-16 x 1", Gr. 2)
21157
|
$0.53 | ||
|
Toplock Nut (5/16"-18)
21159
|
$0.26 | ||
|
Diverter Valve
Replaced by 260141
21128
|
No Longer Available | ||
|
Hornet Diverter Valve Update Kit
Includes diverter, solenoid, hardware & installation instructions.
260141
|
$526.00 | ||
|
Diverter Valve Solenoid
Replaced by 260141
21340
|
No Longer Available | ||
|
Hydraulic Manifold
206012
|
$469.00 | ||
|
Bolt (5/8"-18 x 1.5", Gr. 8)
236018
|
$3.19 | ||
|
Tilt Stop Plate
Includes decals & safety signs.
210063S
|
$22.25 | ||
|
Grease Fitting
35220
|
$0.81 | ||
|
Socket Head Bolt (5/16"-18 x 3.5")
216028
|
$1.19 | ||
|
Clevis Pin
21134
|
$5.07 | ||
|
Rue Clip
21078
|
$0.49 | ||
|
Tilt Cylinder Weldment
210074
|
$405.00 | ||
|
Bolt (3/4"-10 x 4", Gr. 8)
216009
|
$7.65 | ||
|
Pin (1.5" x 10.25")
230125
|
$28.00 | ||
|
Klik Pin Assembly
7524
|
$1.64 | ||
|
Toplock Nut (1/4"-20)
10195
|
$0.87 | ||
|
Bolt (1/4"-20 x 1.25", Gr. 5)
206046
|
$0.19 | ||
|
Flat Washer (1/4")
21056
|
$0.08 | ||
|
Operator’s Manual Canister
21258
|
$11.98 | ||
|
Boss
210062
|
$6.11 | ||
|
Toplock Nut (3/4"-10)
10268
|
$2.14 | ||
|
Clamp Plate Assembly
Provide Serial Number When Ordering
200080
|
$4,053.00 | ||
|
Upper Foot
210060
|
$55.25 | ||
|
Flat Washer (3/4")
10267
|
$0.65 | ||
|
Bolt (3/4"-10 x 2.5", Gr. 8)
206088
|
$4.50 | ||
|
Chain Hook
210064
|
$14.90 | ||
|
Lower Foot
210055
|
$55.25 | ||
|
Bolt (3/4"-10 x 2.75", Gr. 8)
216008
|
$5.67 | ||
|
Domed Driving Tool
196067
|
$635.00 | ||
|
Flat Driving Tool
196067F
|
$635.00 | ||
|
Concrete Breaker Tool
236080
|
$150.00 | ||
|
Rock Spike
236089
|
$655.00 | ||
|
Spring Mount Weldment
200580
|
$87.75 | ||
|
Grapple Spring
206090
|
$89.00 | ||
|
Grapple Mount
200565
|
$105.00 | ||
|
Grapple Bushing
206095
|
$7.72 | ||
|
Grapple Assembly
200221
|
$584.00 | ||
|
Bolt (3/4"-10 x 2.25", Gr. 8)
9037
|
$4.58 | ||
|
Post Pulling Chain
216003
|
$76.25 | ||
|
Nitrogen Cylinder
206101
|
$287.00 | ||
|
Nitrogen Gas Charge Kit
206102
|
$62.75 |
