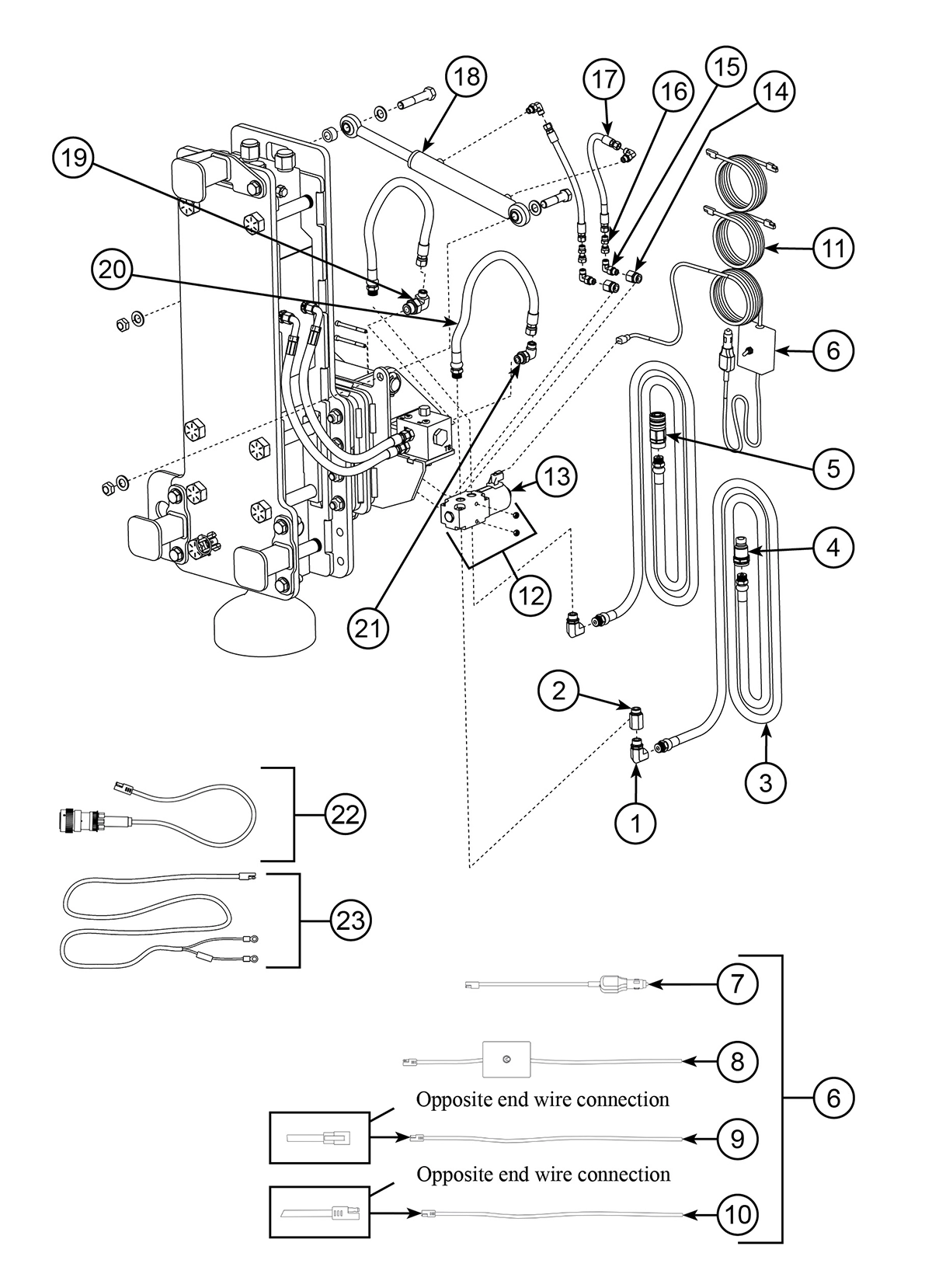

Hornet T8-RR with Grapple & Tilt – Backhoe & Excavator Mount (SN 1000+) - Tilt Hydraulics
Assembly:
NOTE Danuser does not sell replacement O-rings. Refer to the O-Ring Sizing Chart to identify the correct size for your need. O-rings are available from many local hydraulic and auto parts suppliers.
Select plus (+) to zoom in, minus (-) to zoom out, or full-screen button (four outward-pointing arrows) to enlarge the image to full screen.
Prices are shown in USD
| Part | Price | Quantity | |
|---|---|---|---|
|
Adapter, 90° (#10 ORB M to #10 ORB F)
216038
|
$20.25 | ||
|
Adapter (#10 ORB M to #10 ORB F)
216039
|
$36.00 | ||
|
1/2” Hose Assembly (#10 ORB M to #10 ORB M)
216073
|
$105.00 | ||
|
Male Coupler (1/2" flush-face, ISO 16028)
10048
|
$46.00 | ||
|
Female Coupler (1/2" flush-face, ISO 16028)
10049
|
$74.00 | ||
|
Wiring Harness
Includes 21343, 21344, 21345, & 21346
21162
|
$240.00 | ||
|
Wire (12-volt Auxiliary Power)
21343
|
$67.50 | ||
|
Wire (Control Switch)
21344
|
$67.50 | ||
|
Wire (Solenoid)
21345
|
$67.50 | ||
|
Wire (Extension)
21346
|
$67.25 | ||
|
Diverter Valve
Replaced by 260141
21128
|
No Longer Available | ||
|
Hornet Diverter Valve Update Kit
Includes diverter, solenoid, hardware & installation instructions.
260141
|
$526.00 | ||
|
Diverter Valve Solenoid
Replaced by 260141
21340
|
No Longer Available | ||
|
Adapter (#10 ORB M to #6 ORB F)
216029
|
$5.25 | ||
|
Adapter, 90° (#4 ORFS M to #6 ORB M)
206014
|
$8.16 | ||
|
Restrictor (#4 ORFS M to #4 ORFS F)
216030
|
$25.00 | ||
|
1/4” Hose Assembly (#4 ORFS F to #4 ORFS F)
216031
|
$29.29 | ||
|
Tilt Cylinder Weldment
210074
|
$405.00 | ||
|
Adapter, 90° (#8 ORFS M to #12 ORB M)
216027
|
$19.10 | ||
|
1/2” Hose Assembly (#8 ORFS F to #10 ORB M)
216033
|
$42.50 | ||
|
Adapter, 90° (#8 ORFS M to #10 ORB M)
216026
|
$13.95 | ||
|
8-Pin Wiring Harness (ASV, Caterpillar, Komatsu, Terex)
21220-1
|
$192.00 | ||
|
14-Pin Wiring Harness (Bobcat (Prior to 1999), Case, Kubota, New Holland, Takeuchi, Volvo)
21220-2
|
$192.00 | ||
|
14-Pin Wiring Harness (John Deere)
21220-3
|
$192.00 | ||
|
14-Pin Wiring Harness (Caterpillar)
21220-4
|
$192.00 | ||
|
14-Pin (Bobcat (1999 and current), Gehl)
21220-5
|
$192.00 | ||
|
8-Pin Wiring Harness (Universal)
Requires connector contacts be installed in a switchable +12-volt pin location and ground pin location. Mapping of skid-steer connector pins required.
21220-U1
|
$192.00 | ||
|
14-Pin Wiring Harness (Universal)
Requires connector contacts be installed in a switchable +12-volt pin location and ground pin location. Mapping of skid-steer connector pins required.
21220-U2
|
$192.00 | ||
|
Wiring Harness (Battery Connection)
Connects to battery terminals for alternative power connection for Hornet models with tilt.
21253
|
$63.00 |
