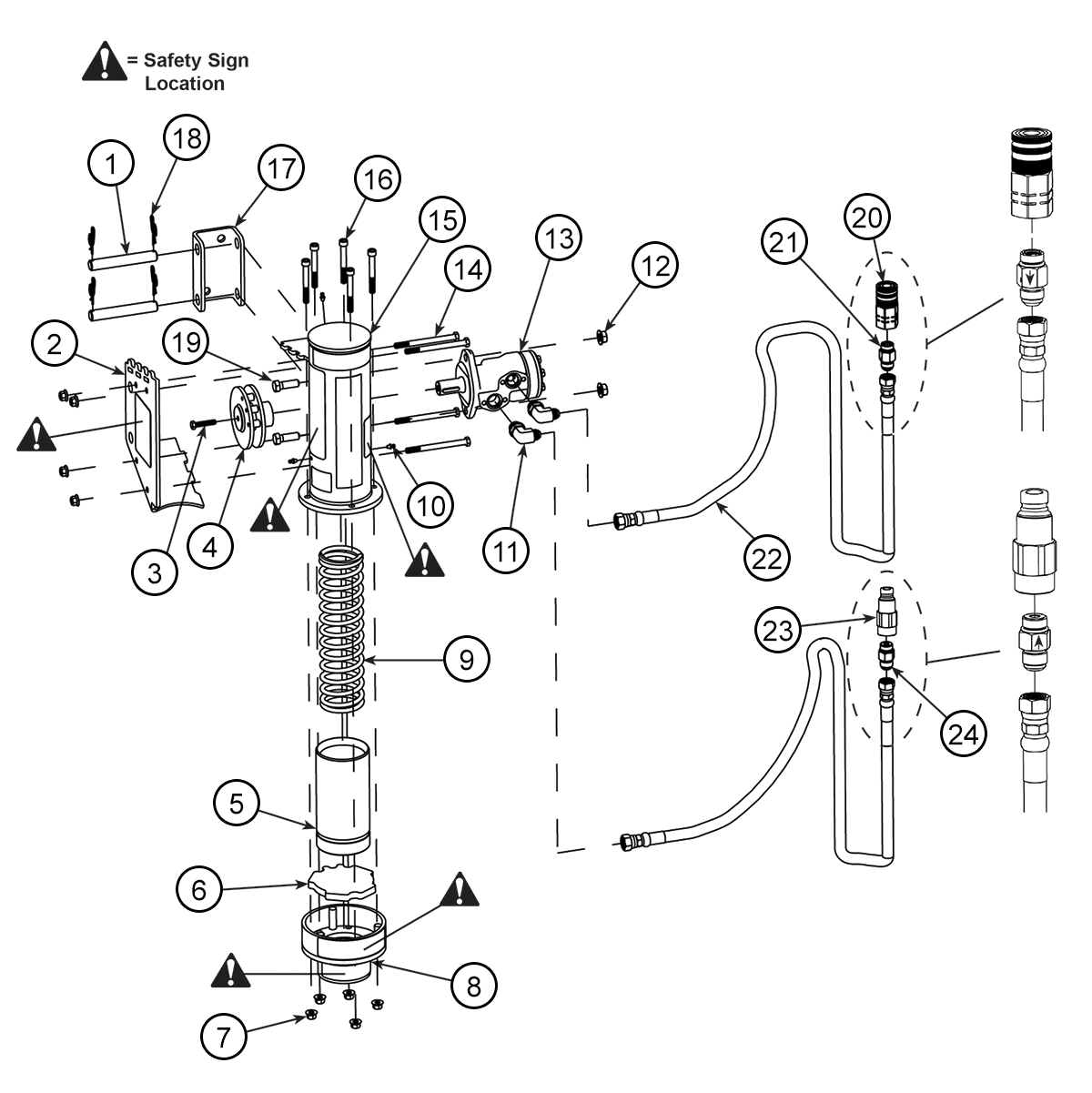

T3 Driver (SN 1391-3209) - Main Assembly
Assembly:
NOTE Danuser does not sell replacement O-rings. Refer to the O-Ring Sizing Chart to identify the correct size for your need. O-rings are available from many local hydraulic and auto parts suppliers.
Select plus (+) to zoom in, minus (-) to zoom out, or full-screen button (four outward-pointing arrows) to enlarge the image to full screen.
Prices are shown in USD
| Part | Price | Quantity | |
|---|---|---|---|
|
Pin
21284
|
$9.69 | ||
|
Cover Plate
Includes decals & safety signs.
21324
|
$43.25 | ||
|
Hex Bolt (M8 x 1.25 x 40 mm, Gr. 8.8)
21319
|
$1.13 | ||
|
Drive Wheel Assembly
If 200001 hydraulic motor conversion kit is installed, this part will not fit—use 21380 instead.
21326
|
$122.00 | ||
|
Drive Wheel Assembly
Required if you have previously installed 200001 hydraulic motor conversion kit. Replaces 21326 in this instance.
21380
|
$118.00 | ||
|
Weight Assembly
21296 190084
|
$190.00 | ||
|
Strike Plate
21314
|
$23.75 | ||
|
Toplock Flange Nut (3/8"-16)
21316
|
$1.02 | ||
|
Foot
21309
|
$77.50 | ||
|
Compression Spring
21323
|
$57.00 | ||
|
Grease Fitting
35220
|
$0.81 | ||
|
Adapter, 90° (#10 ORB M to #8 JIC M)
20034
|
$8.74 | ||
|
Toplock Flange Nut (1/2"-13)
6196
|
$1.02 | ||
|
T3 Hydraulic Motor Conversion Kit
Includes nuts, bolts, & drive wheel assembly. Do not purchase drive wheel assembly separately when ordering this kit. Requires drive wheel assembly 21380 for future replacement
21322 200001
|
$528.00 | ||
|
Bolt (3/8"-16 x 4.5", Gr. 5)
21318
|
$1.48 | ||
|
Housing
Includes decals & safety signs. Provide serial number when ordering.
21291S
|
$210.00 | ||
|
Socket Head Bolt (3/8"-16 x 3")
21315
|
$1.86 | ||
|
Mount Bracket
21302
|
$25.00 | ||
|
Rue Clip
21078
|
$0.49 | ||
|
Hex Cap Screw (1/2"-13 x 1.5", Gr. 2)
6341
|
$1.00 | ||
|
Female Coupler (1/2" flush-face, ISO 16028)
10049
|
$74.00 | ||
|
Fitting - Velocity Fuse
21285
|
$144.00 | ||
|
Hydraulic Hose Assembly (84" length)
21290
|
$82.00 | ||
|
Male Coupler (1/2" flush-face, ISO 16028)
12108
|
$77.00 | ||
|
Fitting - Check Valve
21289
|
$118.00 |
