CB40 (SN 0053-0070) - Case, Hammer Weight, Quick Attach

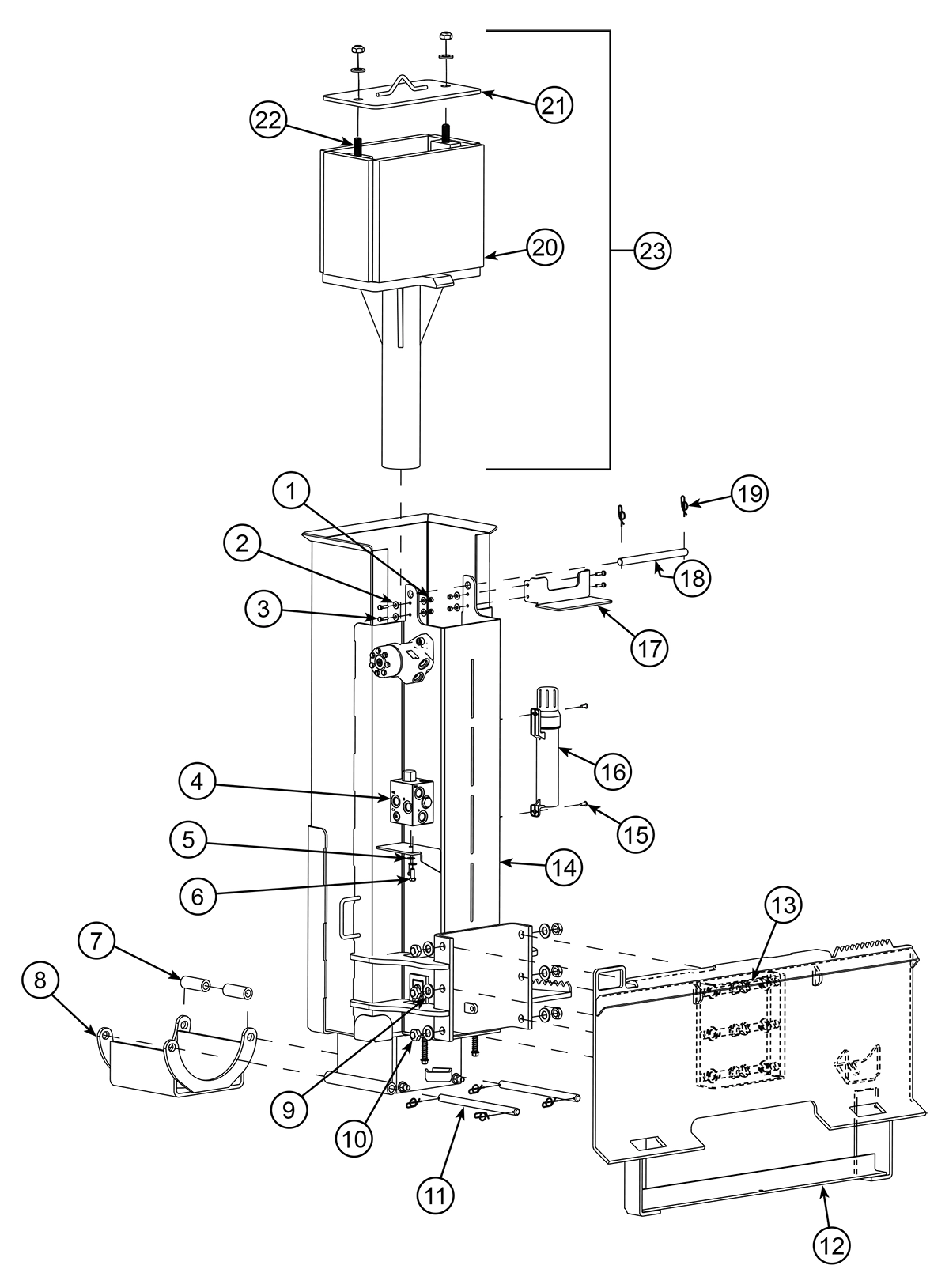

Assembly:
Select plus (+) to zoom in, minus (-) to zoom out, or full-screen button (four outward-pointing arrows) to enlarge the image to full screen.
Prices are shown in USD
| Part | Price | Quantity | |
|---|---|---|---|
|
Toplock Nut (1/4"-20)
10195
|
$0.87 | ||
|
Flat Washer (1/4")
21056
|
$0.08 | ||
|
Bolt (1/4"-20 x 1", Gr. 5)
21055
|
$0.15 | ||
|
Hydraulic Manifold
21137
|
$444.00 | ||
|
Flat Washer (3/8")
2178
|
$0.13 | ||
|
Bolt (3/8"-16 x 1", Gr. 2)
21157
|
$0.53 | ||
|
Boss (Spacer)
21277
|
$12.32 | ||
|
Foot Assembly
21274
|
$118.00 | ||
|
Flat Washer (3/4")
10267
|
$0.65 | ||
|
Toplock Nut (3/4"-10)
10268
|
$2.14 | ||
|
Pin
21079
|
$15.61 | ||
|
Quick Attach Plate
Includes Decals & Safety Signs
21086S
|
$471.00 | ||
|
Bolt (3/4"-10 x 2.25", Gr. 5)
21105
|
$3.52 | ||
|
Case
21026
|
$1,259.00 | ||
|
Drive Rivet
21259
|
$0.87 | ||
|
Operator’s Manual Canister
21258
|
$11.98 | ||
|
Cover
21133 200280
|
$33.00 | ||
|
Retention Pin
21118
|
$13.52 | ||
|
Rue Clip
21078
|
$0.49 | ||
|
Weight
21271
|
$1,606.00 | ||
|
Weight Cover
21052
|
$39.00 | ||
|
Stud (3/4"-10 x 3.25")
21054
|
$5.85 | ||
|
Weight Assembly
Includes 10267, 10268, 21271, 21052, & 21054
21270
|
$2,206.00 |
