EP Mounts - John Deere 200-500 Series Quick Attach – Offset

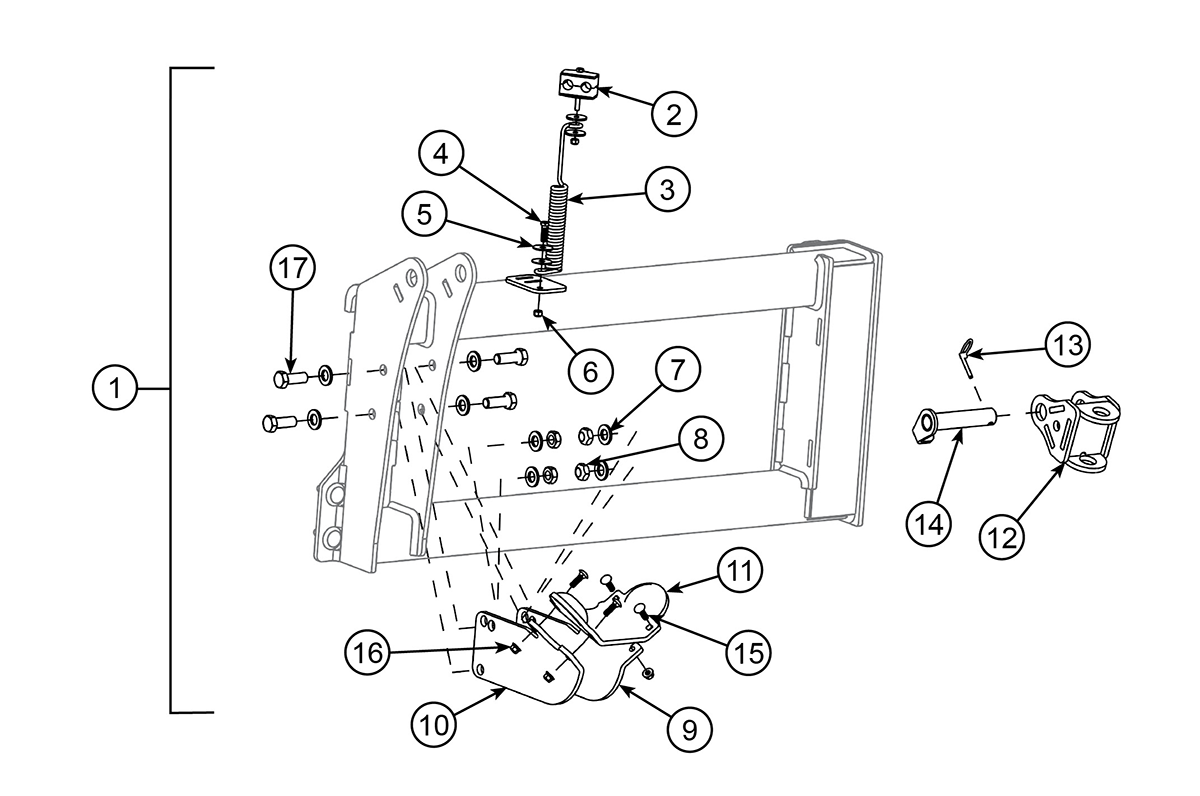

Assembly:
Select plus (+) to zoom in, minus (-) to zoom out, or full-screen button (four outward-pointing arrows) to enlarge the image to full screen.
Prices are shown in USD
| Part | Price | Quantity | |
|---|---|---|---|
|
John Deere 200-500 Series Quick Attach Plate Assembly
Contact Danuser For Purchase Information
190053
|
|||
|
1/2" Hydraulic Hose Clamp Kit
Includes Hardware
12251
|
$19.98 | ||
|
Hydraulic Hose Spring
12247
|
$29.00 | ||
|
Bolt (3/8"-16 x 1.25", Gr.5)
1180
|
$0.63 | ||
|
Washer (13/32" x 1-1/2")
12259
|
$0.77 | ||
|
Toplock Nut (3/8"-16)
10412
|
$0.37 | ||
|
Flat Washer (3/4")
10267
|
$0.65 | ||
|
Toplock Nut (3/4"-10)
10268
|
$2.14 | ||
|
Left Cradle Arm
190122
|
$31.00 | ||
|
Right Cradle Arm
190123
|
$31.00 | ||
|
Center Cradle Plate
190124
|
$27.00 | ||
|
Knuckle Assembly
170607
|
$99.50 | ||
|
Klik Pin
1600
|
$0.83 | ||
|
Pin Assembly
180422
|
$38.25 | ||
|
Carriage Bolt (3/8"-16 x 1.25", Gr. 5)
196020
|
$0.84 | ||
|
Toplock Flange Nut (3/8"-16)
21316
|
$1.02 | ||
|
Bolt (3/4"-10 x 2", Gr. 8)
196012
|
$4.10 |
