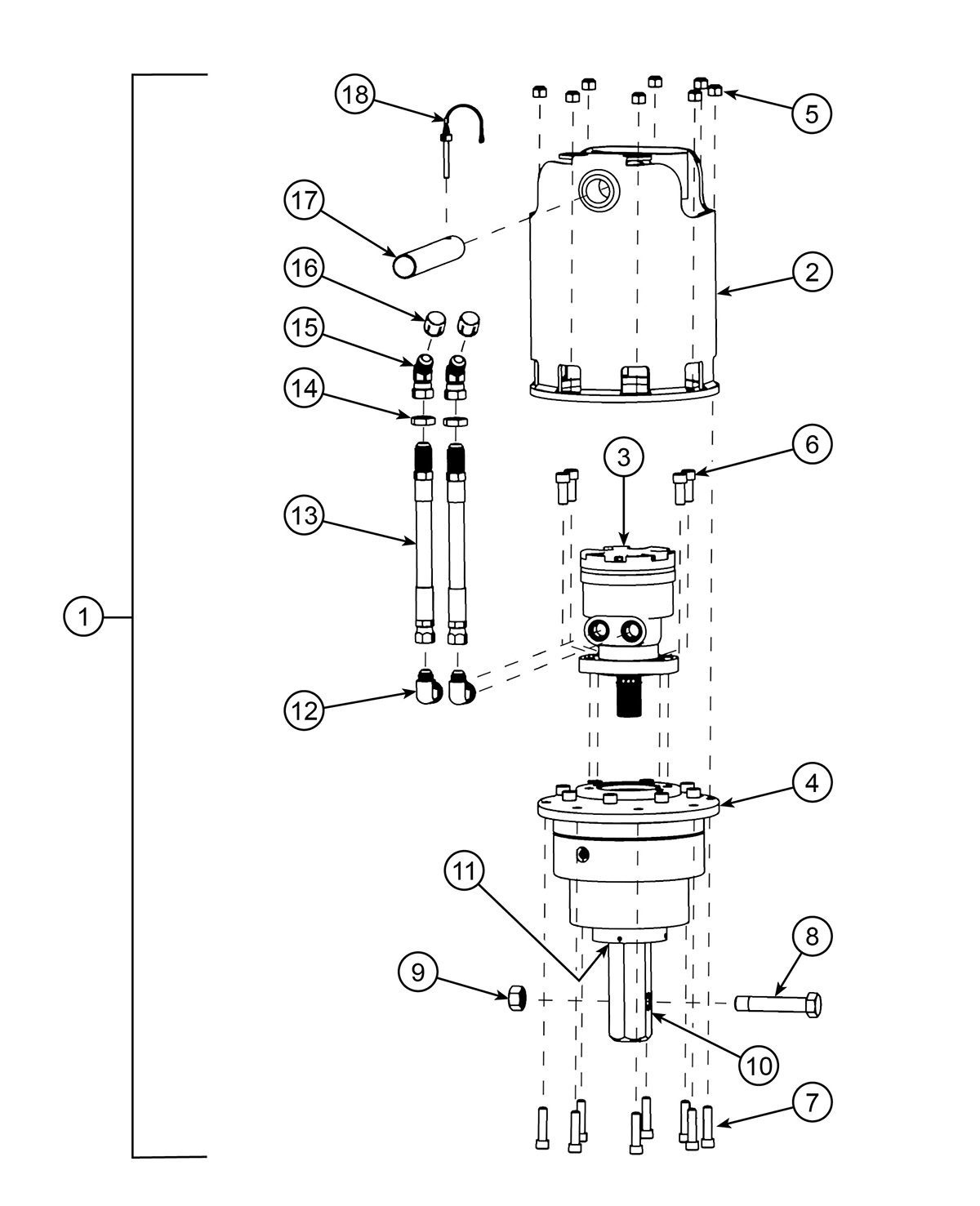

Model EP2035 (SN 1001+) - Drive Unit
Assembly:
Select plus (+) to zoom in, minus (-) to zoom out, or full-screen button (four outward-pointing arrows) to enlarge the image to full screen.
Prices are shown in USD
| Part | Price | Quantity | |
|---|---|---|---|
|
EP2035 Drive Unit
Contact Danuser for purchase information.
180408
|
|||
|
Housing Assembly
Includes decals & safety signs. Provide serial number when ordering.
180409S-EP2035
|
$313.00 | ||
|
Hydraulic Motor
10964
|
$895.00 | ||
|
Hydraulic Motor Seal Kit
Not pictured. Servicing motor will void motor warranty.
10955
|
$278.00 | ||
|
Planetary Gearbox (2" Hex)
20300
|
$1,316.00 | ||
|
Toplock Nut (7/16"-14)
10197
|
$0.81 | ||
|
Socket Head Bolt (M12 x 35mm)
10482
|
$1.33 | ||
|
Socket Head Bolt (7/16"-14 x 1.75")
196009
|
$2.87 | ||
|
Special Retaining Bolt (3/4"-10 x 4", Gr. 8)
10038
|
$14.00 | ||
|
Nut (3/4"-10)
10041
|
$1.45 | ||
|
Output Spindle (2" Hex)
20305
|
$473.00 | ||
|
Output Spindle Seal
20312
|
$58.00 | ||
|
Adapter, 90° (#10 ORB M to #8 JIC M)
20034
|
$8.74 | ||
|
1/2" Hose Assembly (#10 JIC M to #8 JIC F)
186071
|
$30.00 | ||
|
Nut (7/8"-14)
20191
|
$2.29 | ||
|
Adapter, 45° (#10 JIC F to #10 JIC M)
10484
|
$12.90 | ||
|
Adapter Thread Protector Cap
10045
|
$1.13 | ||
|
Pin (1-1/4" x 9-1/2")
180425
|
$30.00 | ||
|
Lock Pin
196018
|
$3.22 |
