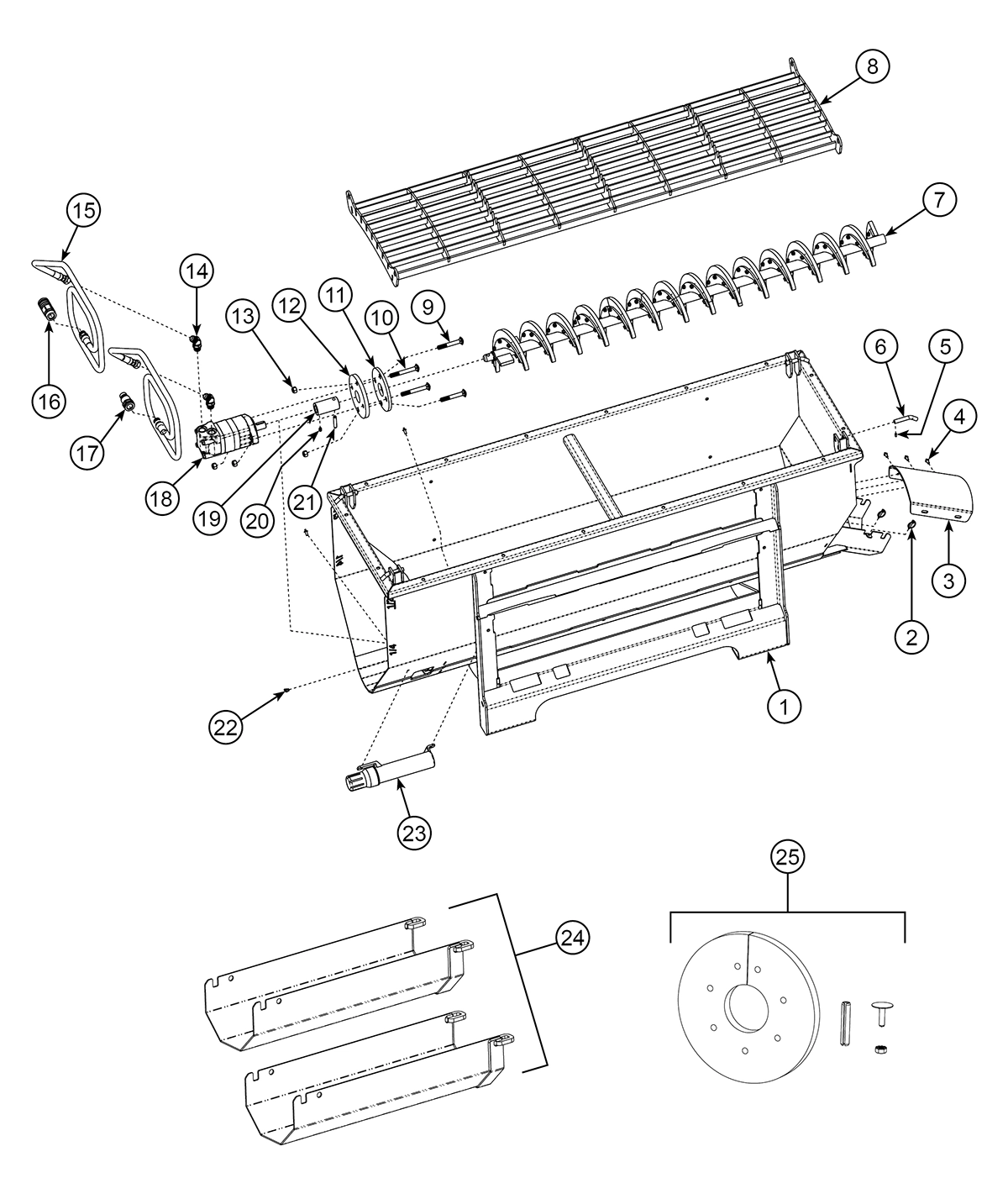

MAC Bucket (SN 1000+) - Main Assembly
Assembly:
Select plus (+) to zoom in, minus (-) to zoom out, or full-screen button (four outward-pointing arrows) to enlarge the image to full screen.
Prices are shown in USD
| Part | Price | Quantity | |
|---|---|---|---|
|
Hopper- Service
Includes decals & safety signs. Provide serial number when ordering.
230410S
|
$1,662.00 | ||
|
Klik Pin Assembly
7637
|
$0.78 | ||
|
Discharge Rubber Flap
230443
|
$39.75 | ||
|
Drive Rivet
176033
|
$1.04 | ||
|
Roll Pin (3/16" x 1/2")
176010
|
$0.22 | ||
|
Hinge Pin
170073
|
$7.61 | ||
|
Steel Auger Assembly
11063
|
$814.00 | ||
|
Rubber Auger Assembly
11047
|
$983.00 | ||
|
Safety Grate
230450
|
$281.00 | ||
|
Carriage Bolt (1/2"-13 x 3.5", Gr. 5)
246005
|
$1.84 | ||
|
Carriage Bolt (1/2"-13 x 4", Gr. 5)
246004
|
$2.31 | ||
|
Seal Retaining Plate
230441
|
$12.40 | ||
|
Seal
230440
|
$24.00 | ||
|
Toplock Nut (1/2"-13)
10125
|
$0.57 | ||
|
Adapter, 45° (#10 JIC M to #10 ORB M)
10040
|
$11.98 | ||
|
1/2" Hose Assembly (#10 JIC F to #10 ORB M)
246006
|
$67.75 | ||
|
Female Coupler (1/2" flush-face, ISO 16028)
10049
|
$74.00 | ||
|
Male Coupler (1/2" flush-face, ISO 16028)
10048
|
$46.00 | ||
|
Hydraulic Motor
246008
|
$483.00 | ||
|
Hub
230442
|
$34.00 | ||
|
Set Screw (5/16"-18 x 0.5")
246002
|
$0.27 | ||
|
Roll Pin (3/8" x 2")
11038
|
$1.20 | ||
|
Grease Fitting, 45°
246029
|
$1.36 | ||
|
Operator’s Manual Canister
21258
|
$11.98 | ||
|
Chute - 24"
Chutes can be linked to extend length.
11019
|
$257.00 | ||
|
Rubber Flighted Auger Replacement Kit
11050
|
$370.00 |
