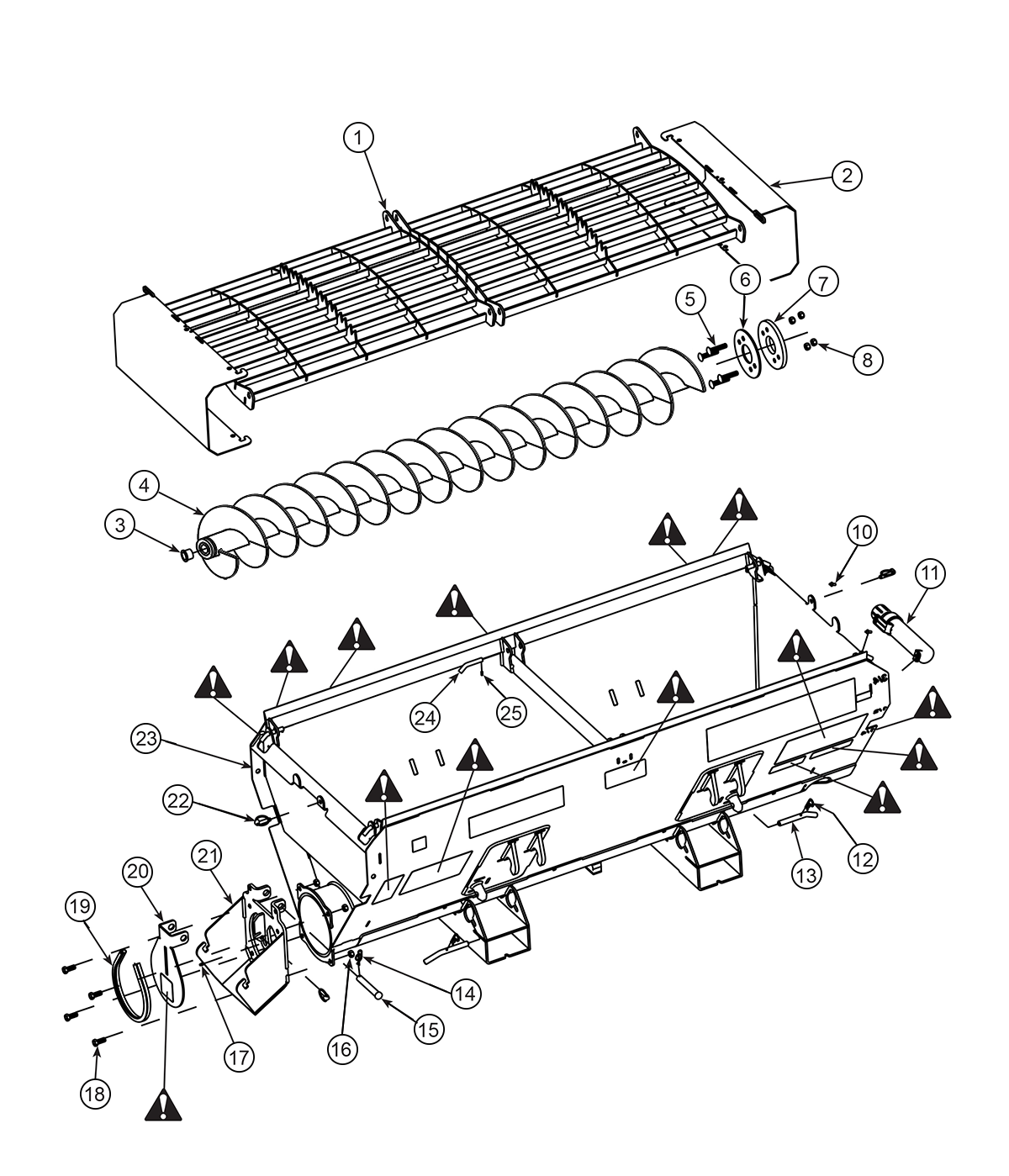

Mega Mixer S75 (SN 1001-1141) - Hopper
Assembly:
Select plus (+) to zoom in, minus (-) to zoom out, or full-screen button (four outward-pointing arrows) to enlarge the image to full screen.
Prices are shown in USD
| Part | Price | Quantity | |
|---|---|---|---|
|
Safety Grate
170060
|
$256.00 | ||
|
24" Chute
Chutes can be linked to extend length.
170100
|
$67.00 | ||
|
Auger Bearing
176012
|
$15.56 | ||
|
Steel Auger Assembly
Includes 176012
170050 182050
|
$668.00 | ||
|
Carriage Bolt (1/2"-13 x 2.5", Gr. 5)
176007
|
$2.02 | ||
|
Seal Retaining Plate
170069
|
$12.85 | ||
|
Seal
170068
|
$32.75 | ||
|
Toplock Nut (1/2"-13)
10125
|
$0.57 | ||
|
Drive Rivet
176033
|
$1.04 | ||
|
Operator’s Manual Canister
21258
|
$11.98 | ||
|
Hairpin Cotter
176028
|
$0.64 | ||
|
Connecting Pin
170071
|
$10.42 | ||
|
Rue Clip
21078
|
$0.49 | ||
|
Flap Pin
170037
|
$10.13 | ||
|
Hex Nut (1/2"-13)
1056
|
$0.65 | ||
|
Grease Fitting
35220
|
$0.81 | ||
|
Hex Cap Screw (1/2"-13 x 1.25", Gr. 5)
176006
|
$1.31 | ||
|
Weather Stripping
176004
|
$13.85 | ||
|
Discharge Flap
170038
|
$21.45 | ||
|
Faceplate Assembly
Includes 1056, 21078, 21079, 170135, 35220, 170126, 170145, 12245, 10195, 186072, 170129, 186060, 170128, 170140.
170033 170150
|
$413.00 | ||
|
Klik Pin Assembly
1533
|
$1.51 | ||
|
Hopper
Includes decals & safety signs. Provide serial number when ordering.
170010 170010S
|
$2,289.00 | ||
|
Hinge Pin
170073
|
$7.61 | ||
|
Roll Pin (3/16" x 1/2")
176010
|
$0.22 |
