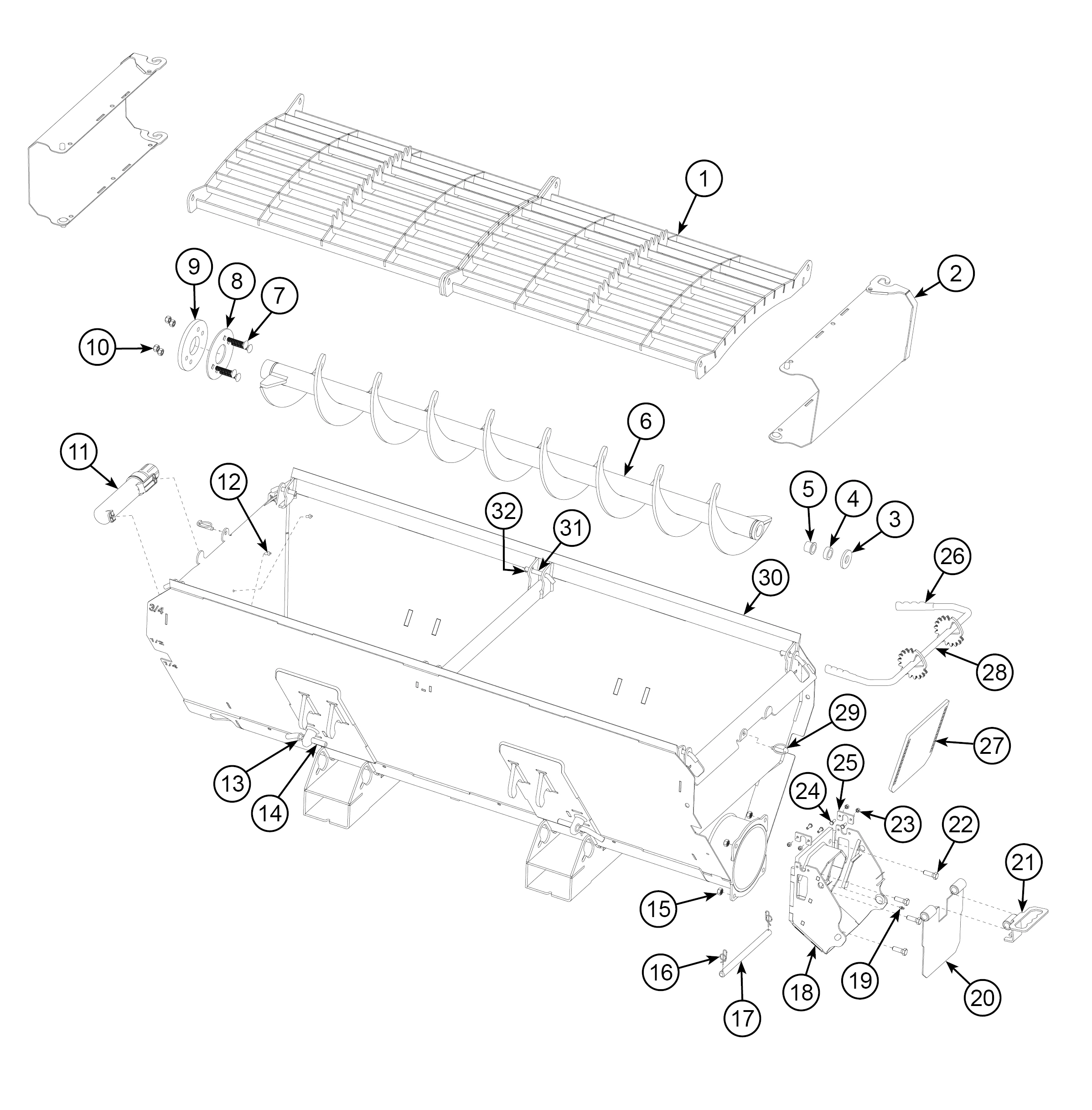

Mega Mixer S75 with Manual Gate - Hopper
Assembly:
Select plus (+) to zoom in, minus (-) to zoom out, or full-screen button (four outward-pointing arrows) to enlarge the image to full screen.
Prices are shown in USD
| Part | Price | Quantity | |
|---|---|---|---|
|
Safety Grate
170060
|
$256.00 | ||
|
24" Chute
Chutes can be linked to extend length.
230205
|
$94.00 | ||
|
Thrust Washer (7/8")
230139
|
$4.77 | ||
|
Shaft Seal
236017
|
$33.00 | ||
|
Auger Bearing
236016
|
$15.56 | ||
|
Steel Auger Assembly
Includes 236017 & 236016
230135
|
$725.00 | ||
|
Carriage Bolt (1/2"-13 x 2.5", Gr. 5)
176007
|
$2.02 | ||
|
Seal Retaining Plate
170069
|
$12.85 | ||
|
Seal
170068
|
$32.75 | ||
|
Toplock Nut (1/2"-13)
10125
|
$0.57 | ||
|
Operator’s Manual Canister
21258
|
$11.98 | ||
|
Drive Rivet
176033
|
$1.04 | ||
|
Hairpin Cotter
176028
|
$0.64 | ||
|
Connecting Pin
170071
|
$10.42 | ||
|
Hex Nut (1/2"-13)
1056
|
$0.65 | ||
|
Rue Clip
21078
|
$0.49 | ||
|
Pin
21079
|
$15.61 | ||
|
Faceplate Weldment
230200
|
$266.00 | ||
|
Grease Fitting
35220
|
$0.81 | ||
|
Discharge Flap
Includes decals & safety signs.
170126S
|
$35.50 | ||
|
Locking Handle
170145
|
$32.25 | ||
|
Hex Cap Screw (1/2"-13 x 1.5", Gr. 5)
12245
|
$1.20 | ||
|
Toplock Nut (1/4"-20)
10195
|
$0.87 | ||
|
Bolt (1/4"-20 x 0.75", Gr. 5)
186072
|
$0.34 | ||
|
Handle Clamp
170129
|
$4.42 | ||
|
Handle Grip
186060
|
$11.00 | ||
|
Gate
170128
|
$53.00 | ||
|
Handle Assembly
170140
|
$60.50 | ||
|
Klik Pin Assembly
1533
|
$1.51 | ||
|
Hopper
Includes decals & safety signs. Provide serial number when ordering.
170010S
|
$2,289.00 | ||
|
Hinge Pin
170073
|
$7.61 | ||
|
Roll Pin (3/16" x 1/2")
176010
|
$0.22 |
