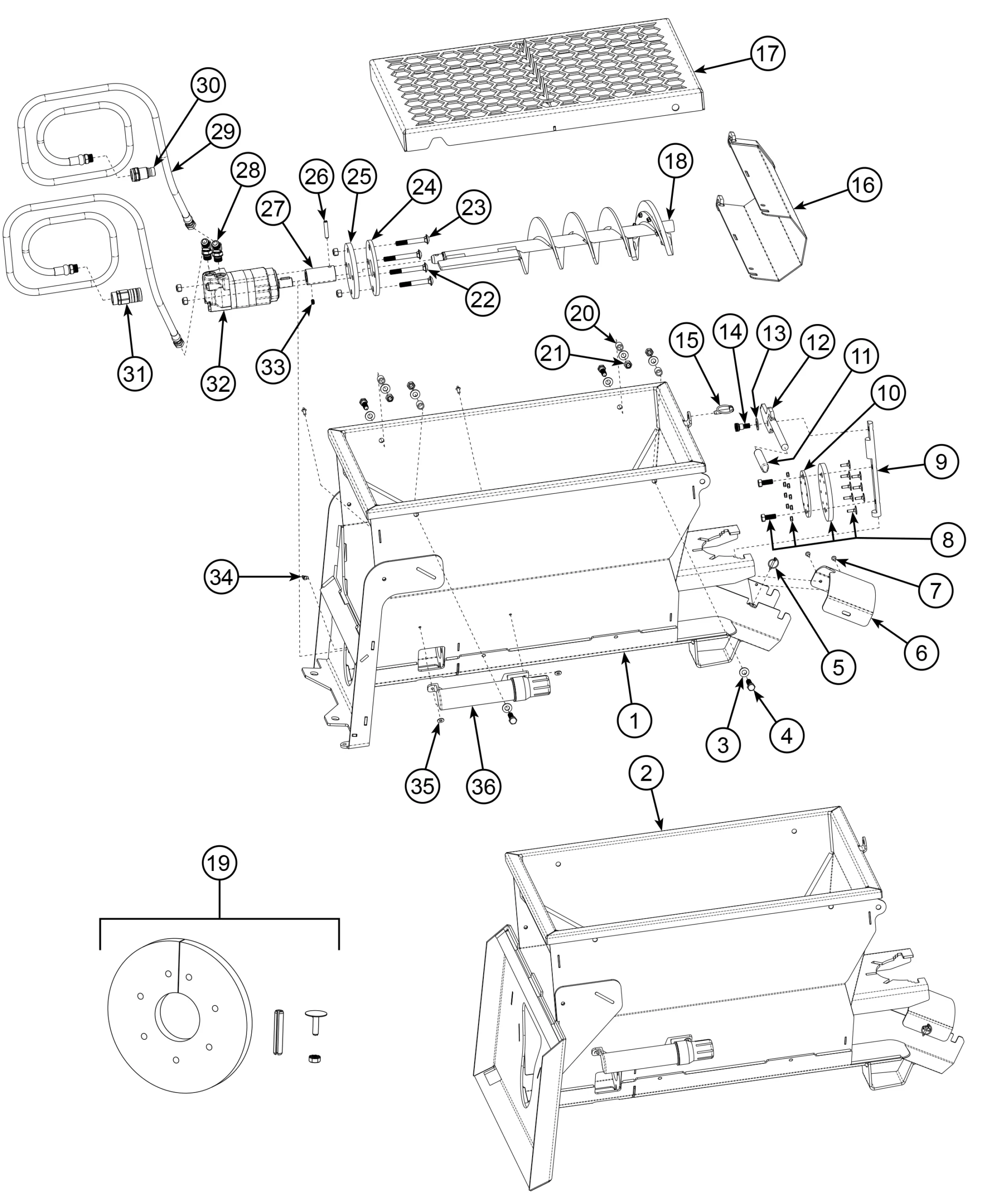

Mini MAC (SN 1000+) - Main Assembly

Select plus (+) to zoom in, minus (-) to zoom out, or full-screen button (four outward-pointing arrows) to enlarge the image to full screen.

Prices are shown in USD
Parts List Table
Part Price Quantity
Universal Mini Hopper
Includes decals & safety signs. Provide serial number when ordering.
230470S
$1,197.00
Bobcat MT Hopper
Includes decals & safety signs. Provide serial number when ordering.
230465S
$1,257.00
Flat Washer (1/2")
21156
$0.20
Hex Cap Screw (1/2"-13 x 1.75", Gr. 5)
933
$1.33
Klik Pin Assembly
7637
$0.78
Discharge Rubber Flap
256026
$37.50
Drive Rivet
176033
$1.04
Gate Seal Kit
230458
$80.50
Gate Seal Rod
230446
$40.00
Plate
230447
$13.95
Handle Grip
186060
$11.00
Handle
Includes 186060
230448S
$30.50
Flat Washer (5/8")
1054
$0.30
Shoulder Bolt (1/2"-13, Ø 5/8" x 1/2" L)
246135
$11.20
Klik Pin Assembly
1533
$1.51
Chute - 24"
Chutes can be linked to extend length.
11019
$257.00
Safety Grate
230490
$219.00
Auger Assembly
230485
$173.00
Mini Auger Rubber Replacement Kit
230469
$45.50
Tube
230493
$5.05
Toplock Nut (1/2"-13)
10125
$0.57
Carriage Bolt (1/2"-13 x 4", Gr. 5)
246004
$2.31
Carriage Bolt (1/2"-13 x 3.5", Gr. 5)
246005
$1.84
Seal Retaining Plate
230441
$12.40
Seal
230440
$24.00
Roll Pin (3/8" x 2")
11038
$1.20
Hub
230442
$34.00
Adapter, 45° (#10 JIC M to #10 ORB M)
10040
$11.98
1/2” Hose Assembly Kit (#10 JIC F to #10 ORB M)
Includes Two Hoses
206031
$117.00
Male Coupler (1/2" flush-face, ISO 16028)
10048
$46.00
Female Coupler (1/2" flush-face, ISO 16028)
10049
$74.00
Hydraulic Motor
246008
$483.00
Set Screw (5/16"-18 x 0.5")
246002
$0.27
Grease Fitting, 45°
246029
$1.36
Flat Washer (1/4")
21056
$0.08
Operator’s Manual Canister
21258
$11.98
