Multi-Purpose Grapple - Parts

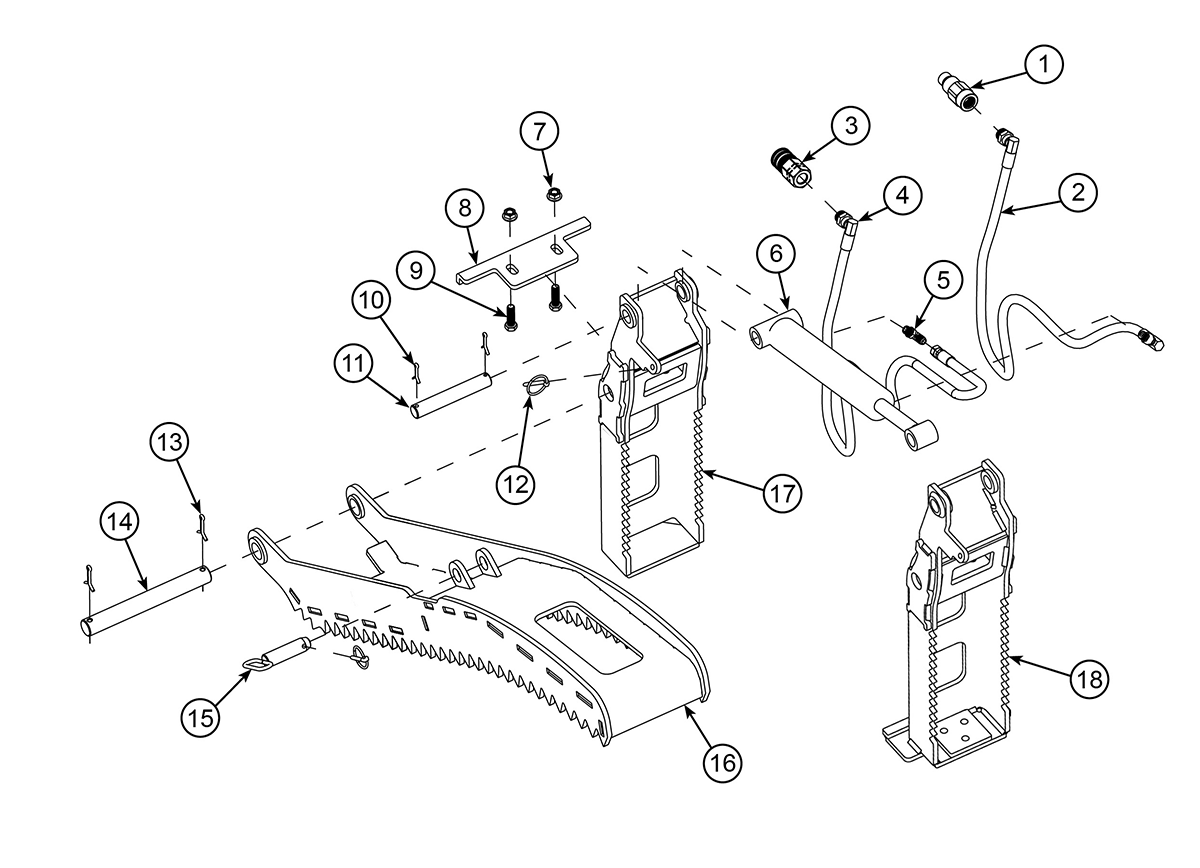

Assembly:
Select plus (+) to zoom in, minus (-) to zoom out, or full-screen button (four outward-pointing arrows) to enlarge the image to full screen.
Prices are shown in USD
| Part | Price | Quantity | |
|---|---|---|---|
|
Male Coupler (1/2" flush-face, ISO 16028)
12108
|
$77.00 | ||
|
3/8" Hose Assembly (#6 ORB M 90° Swivel to #10 ORB M 90° Swivel, with 1/16" Restrictor)
12109
|
$110.00 | ||
|
Female Coupler (1/2" flush-face, ISO 16028)
10049
|
$74.00 | ||
|
3/8" Hose Assembly (#6 JIC F to #10 ORB M 90° Swivel)
12110
|
$97.00 | ||
|
Adapter, 90° (#6 ORB M to #6 JIC M)
12111
|
$5.09 | ||
|
Hydraulic Cylinder
12106
|
$252.00 | ||
|
Toplock Flange Nut (1/2"-13)
6196
|
$1.02 | ||
|
Top Bracket
12093
|
$22.84 | ||
|
Hex Cap Screw (1/2"-13 x 1.75", Gr.8)
12107
|
$1.77 | ||
|
Cotter Pin (3/16" x 1 3/4")
35127
|
$0.80 | ||
|
Pin
12103
|
$20.25 | ||
|
Klik Pin
1600
|
$0.83 | ||
|
Cotter Pin (1/4" x 2")
12105
|
$1.11 | ||
|
Pin
12104
|
$29.00 | ||
|
Cylinder Rod Pin
12100
|
$36.50 | ||
|
Grapple Jaw
12094
|
$392.00 | ||
|
Danuser Mounting Bracket
12086
|
$261.00 | ||
|
Other Brand Mounting Bracket
170501
|
$293.00 |
