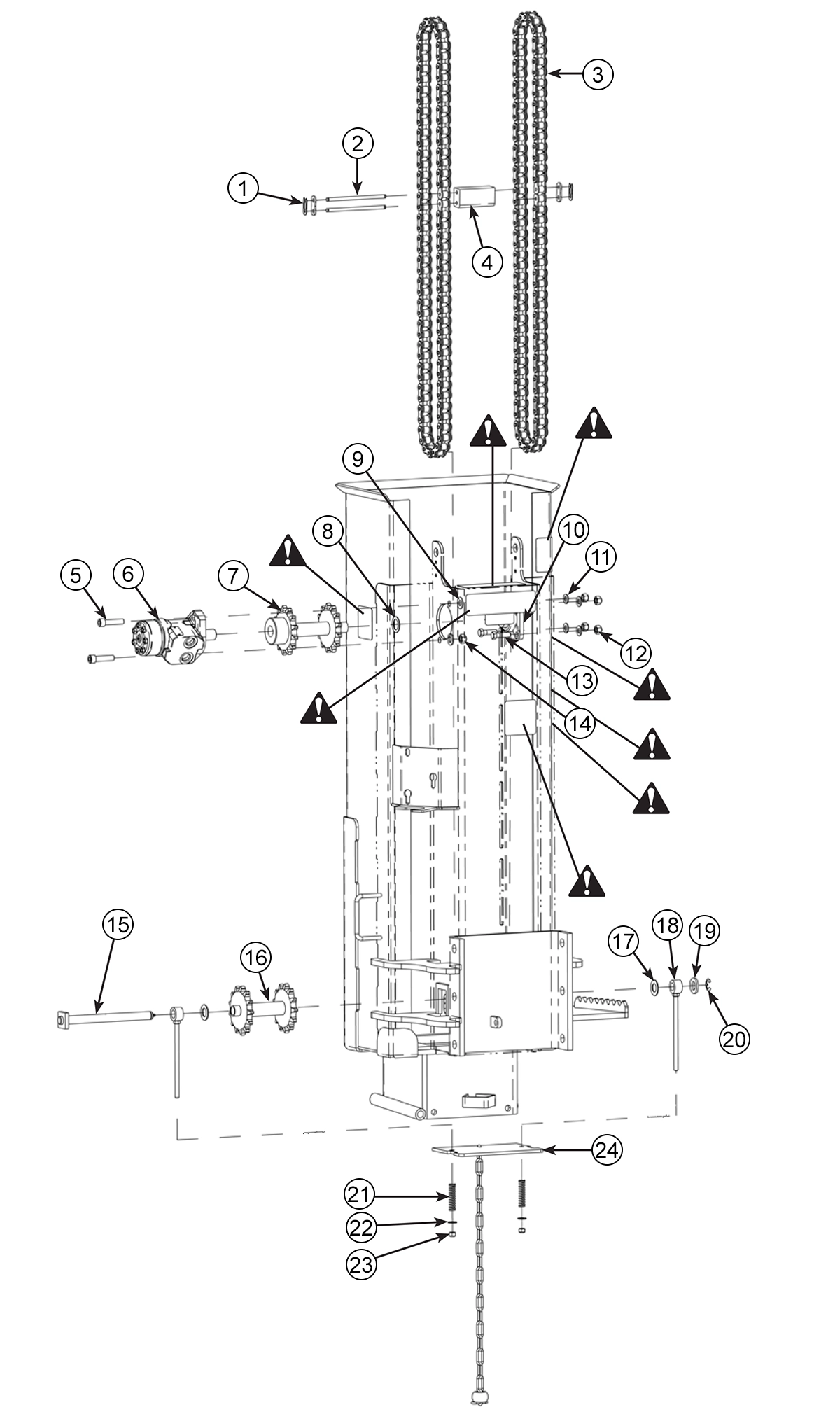

Hammer EM40 (SN 00002-00119) - Drive Assembly
Assembly:
Select plus (+) to zoom in, minus (-) to zoom out, or full-screen button (four outward-pointing arrows) to enlarge the image to full screen.
Prices are shown in USD
| Part | Price | Quantity | |
|---|---|---|---|
|
Connecting Link
21119
|
$3.49 | ||
|
Chain Pin
21024
|
$26.00 | ||
|
Roller Chain (#80, 1" Pitch)
21025
|
$88.00 | ||
|
Catch Weight
21122
|
$31.50 | ||
|
Socket Head Bolt (1/2"-13 x 2")
21126
|
$1.61 | ||
|
Hydraulic Motor
Includes 21281
21113
|
$446.00 | ||
|
Hydraulic Motor Seal Kit
Not Pictured
20079
|
$160.00 | ||
|
Upper Sprocket Shaft Assembly
21114
|
$111.00 | ||
|
Shim (1")
21136
|
$2.44 | ||
|
Flat Washer (1/2")
21156
|
$0.20 | ||
|
Bearing
21043
|
$41.00 | ||
|
Flat Washer (7/16")
2489
|
$0.16 | ||
|
Toplock Nut (7/16"-14)
10197
|
$0.81 | ||
|
Bolt (7/16"-14 x 1.5", Gr. 5)
21057
|
$0.88 | ||
|
Toplock Nut (1/2"-13)
10125
|
$0.57 | ||
|
Sprocket Shaft
21040
|
$39.00 | ||
|
Lower Sprocket Shaft Assembly
21080
|
$89.00 | ||
|
Shim
21125
|
$2.94 | ||
|
Tensioning Rod
21083
|
$13.15 | ||
|
Flat Washer (3/4")
10267
|
$0.65 | ||
|
Retaining Ring
2172
|
$0.40 | ||
|
Spring
21123
|
$5.09 | ||
|
Flat Washer (3/8")
2178
|
$0.13 | ||
|
Toplock Nut (3/8"-16)
10412
|
$0.37 | ||
|
Cover Assembly
21110
|
$36.00 |
