Hammer LM40 (SN 00246+) - Tilt

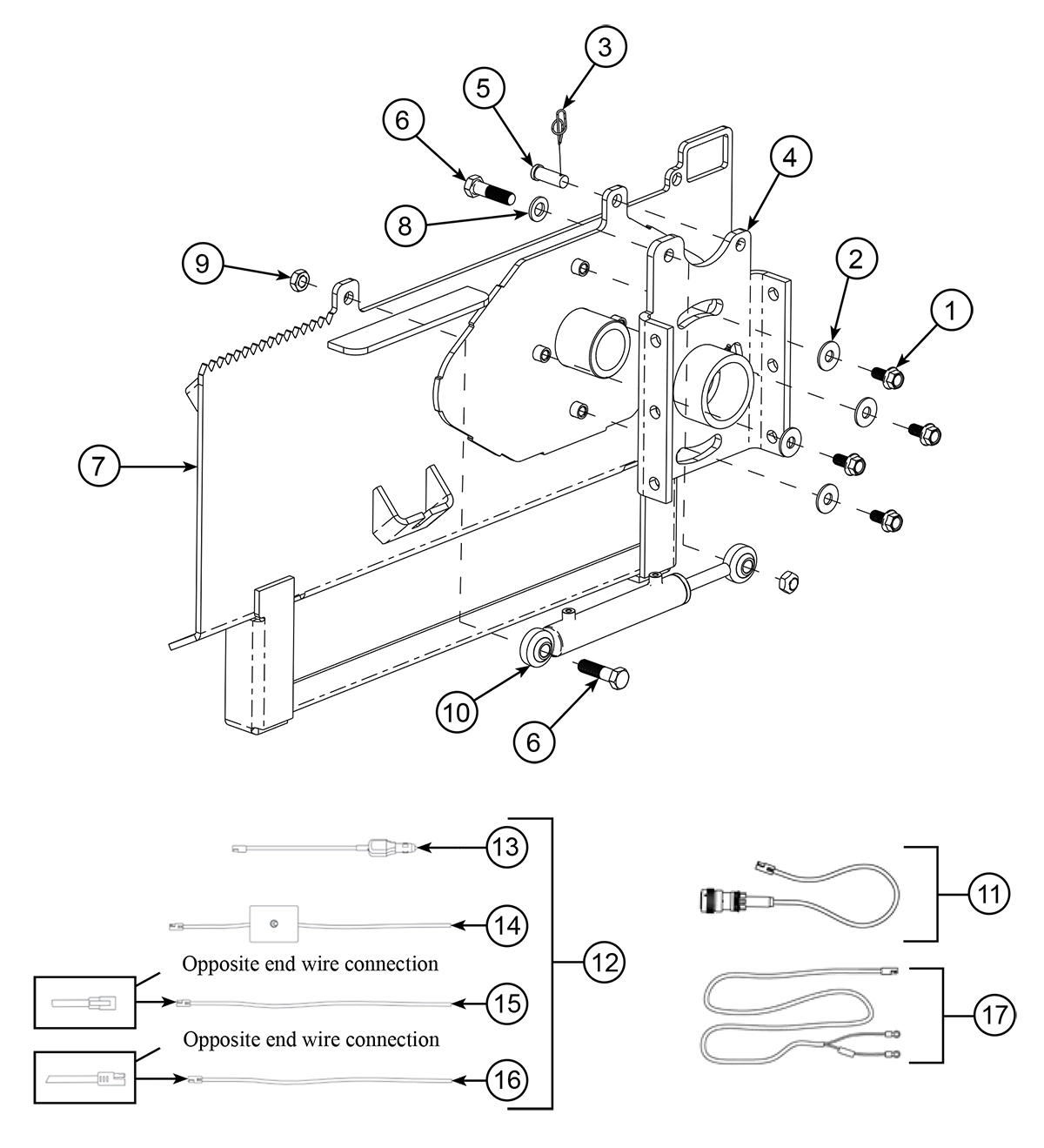

Assembly:
Select plus (+) to zoom in, minus (-) to zoom out, or full-screen button (four outward-pointing arrows) to enlarge the image to full screen.
Prices are shown in USD
| Part | Price | Quantity | |
|---|---|---|---|
|
Flange Bolt (5/8"-11 x 1.25", Gr. 8)
21108
|
$2.75 | ||
|
Flat Washer (5/8")
21107
|
$0.65 | ||
|
Rue Clip
21078
|
$0.49 | ||
|
Offset Skid-Steer Tilt Bracket
21176
|
$173.00 | ||
|
Clevis Pin
21134
|
$5.07 | ||
|
Bolt (3/4"-10 x 2.75", Gr. 5)
21106
|
$4.32 | ||
|
Offset Skid-Steer Quick Attach Plate
21173
|
$646.00 | ||
|
Flat Washer (3/4")
10267
|
$0.65 | ||
|
Toplock Nut (3/4"-10)
10268
|
$2.14 | ||
|
Hydraulic Cylinder
21226
|
$239.00 | ||
|
Hydraulic Cylinder Seal Kit
Not Pictured
176030
|
$43.50 | ||
|
8-Pin Wiring Harness (ASV, Caterpillar, Komatsu, Terex)
21220-1
|
$192.00 | ||
|
14-Pin Wiring Harness (Bobcat (Prior to 1999), Case, Kubota, New Holland, Takeuchi, Volvo)
21220-2
|
$192.00 | ||
|
14-Pin Wiring Harness (John Deere)
21220-3
|
$192.00 | ||
|
14-Pin Wiring Harness (Caterpillar)
21220-4
|
$192.00 | ||
|
14-Pin (Bobcat (1999 and current), Gehl)
21220-5
|
$192.00 | ||
|
8-Pin Wiring Harness (Universal)
Requires connector contacts be installed in a switchable +12-volt pin location and ground pin location. Mapping of skid-steer connector pins required.
21220-U1
|
$192.00 | ||
|
14-Pin Wiring Harness (Universal)
Requires connector contacts be installed in a switchable +12-volt pin location and ground pin location. Mapping of skid-steer connector pins required.
21220-U2
|
$192.00 | ||
|
Wiring Harness
21162
|
$240.00 | ||
|
Wire (12-volt Auxiliary Power)
21343
|
$67.50 | ||
|
Wire (Control Switch)
21344
|
$67.50 | ||
|
Wire (Solenoid)
21345
|
$67.50 | ||
|
Wire (Extension)
21346
|
$67.25 | ||
|
Wiring Harness (Battery Connection)
Connects to battery terminals for alternative power connection for Hammer models with tilt.
21253
|
$63.00 |
