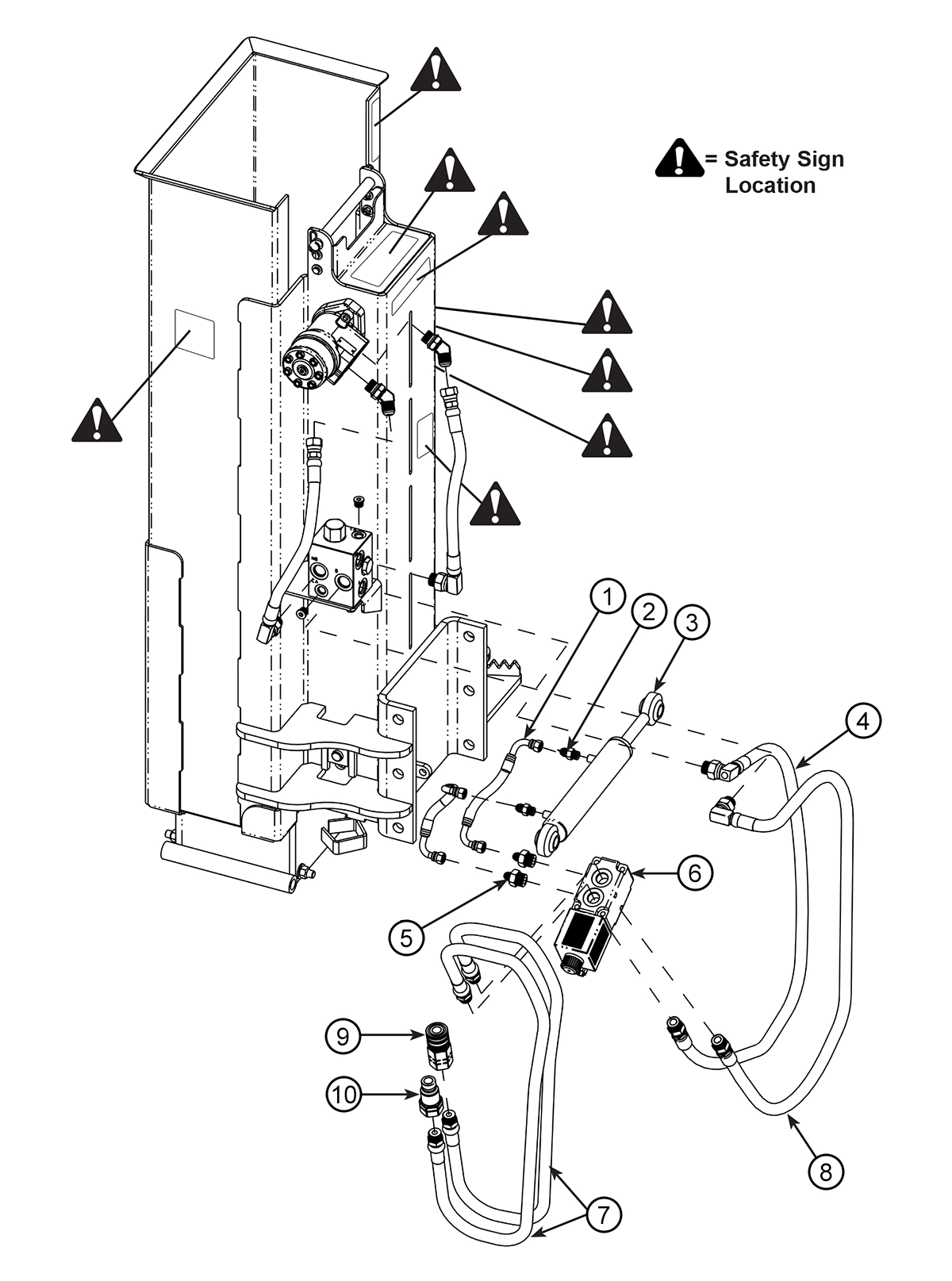

Hammer SM40 (SN 1297-1703) - Tilt Hydraulics
Assembly:
Select plus (+) to zoom in, minus (-) to zoom out, or full-screen button (four outward-pointing arrows) to enlarge the image to full screen.
Prices are shown in USD
| Part | Price | Quantity | |
|---|---|---|---|
|
1/4" Hose Assembly (#6 JIC 90° Swivel to #6 JIC 90° Swivel)
21164
|
$31.00 | ||
|
Restrictor (#6 ORB M to #6 JIC M)
21154
|
$8.89 | ||
|
Hydraulic Cylinder
21103
|
$234.00 | ||
|
Hydraulic Cylinder Seal Kit
Not Pictured
176030
|
$43.50 | ||
|
1/2" Hose Assembly (#8 ORFS F 90° to #10 ORB M Swivel)
21147 196033
|
$60.00 | ||
|
Adapter (#6 JIC M to #10 ORB M)
21153
|
$5.12 | ||
|
Diverter Valve
Includes 21340
21128
|
$522.00 | ||
|
Diverter Valve Solenoid
21340
|
$168.00 | ||
|
1/2" Hose Assembly (#10 ORB M to #10 ORB M)
21145
|
$57.00 | ||
|
1/2" Hose Assembly (#8 ORFS F 90° to #10 ORB M Swivel)
21146 196032
|
$57.00 | ||
|
Female Coupler (1/2" flush-face, ISO 16028)
10049
|
$74.00 | ||
|
Male Coupler (1/2" flush-face, ISO 16028)
10048
|
$46.00 |
