Hammer SM40 (SN 9722+) - Tilt

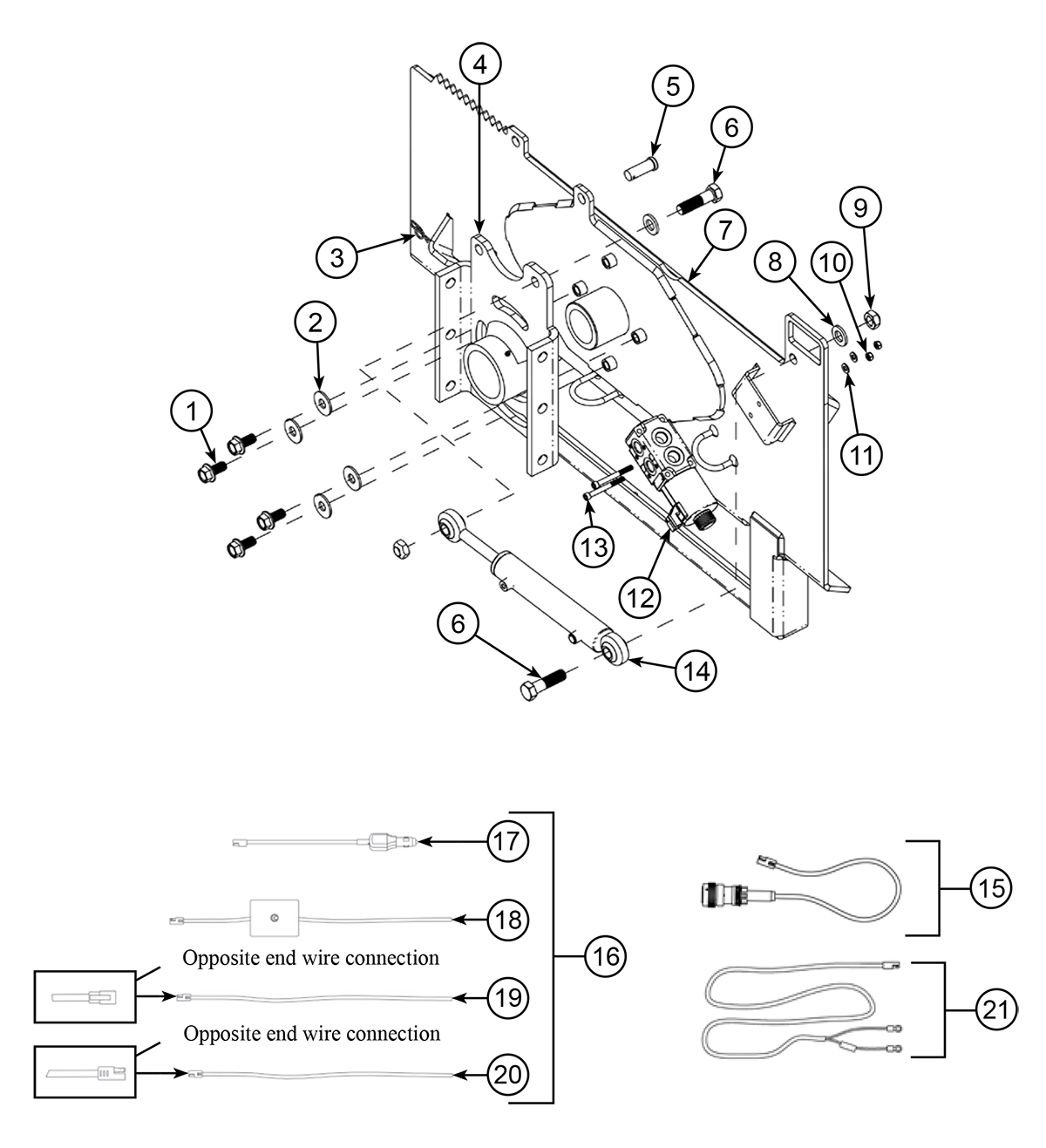

Assembly:

Select plus (+) to zoom in, minus (-) to zoom out, or full-screen button (four outward-pointing arrows) to enlarge the image to full screen.

Prices are shown in USD
Parts List Table
Part Price Quantity
Flange Bolt (5/8"-11 x 1.25", Gr. 8)
21108
 $2.75
Flat Washer (5/8")
21107
 $0.65
Rue Clip
21078
 $0.49
Tilt Bracket
21100
 $170.00
Clevis Pin
21134
 $5.07
Bolt (3/4"-10 x 2.75", Gr. 5)
21106
 $4.32
Quick Attach Plate
21094
 $650.00
Flat Washer (3/4")
10267
 $0.65
Toplock Nut (3/4"-10)
10268
 $2.14
Toplock Nut (5/16"-18)
21159
 $0.26
Flat Washer (5/16")
6339
 $0.08
Diverter Valve
Includes 21340
21128
 $522.00
Diverter Valve Solenoid
21340
 $168.00
Socket Head Bolt (5/16"-18 x 3")
21158
 $0.78
Hydraulic Cylinder
21103
 $234.00
Hydraulic Cylinder Seal Kit
Not Pictured
176030
 $43.50
8-Pin Wiring Harness (ASV, Caterpillar, Komatsu, Terex)
21220-1
 $192.00
14-Pin Wiring Harness (Bobcat (Prior to 1999), Case, Kubota, New Holland, Takeuchi, Volvo)
21220-2
 $192.00
14-Pin Wiring Harness (John Deere)
21220-3
 $192.00
14-Pin Wiring Harness (Caterpillar)
21220-4
 $192.00
14-Pin (Bobcat (1999 and current), Gehl)
21220-5
 $192.00
8-Pin Wiring Harness (Universal)
Requires connector contacts be installed in a switchable +12-volt pin location and ground pin location. Mapping of skid-steer connector pins required.
21220-U1
 $192.00
14-Pin Wiring Harness (Universal)
Requires connector contacts be installed in a switchable +12-volt pin location and ground pin location. Mapping of skid-steer connector pins required.
21220-U2
 $192.00
Wiring Harness
21162
 $240.00
Wire (12-volt Auxiliary Power)
21343
 $67.50
Wire (Control Switch)
21344
 $67.50
Wire (Solenoid)
21345
 $67.50
Wire (Extension)
21346
 $67.25
Wiring Harness (Battery Connection)
Connects to battery terminals for alternative power connection for Hammer models with tilt.
21253
 $63.00
