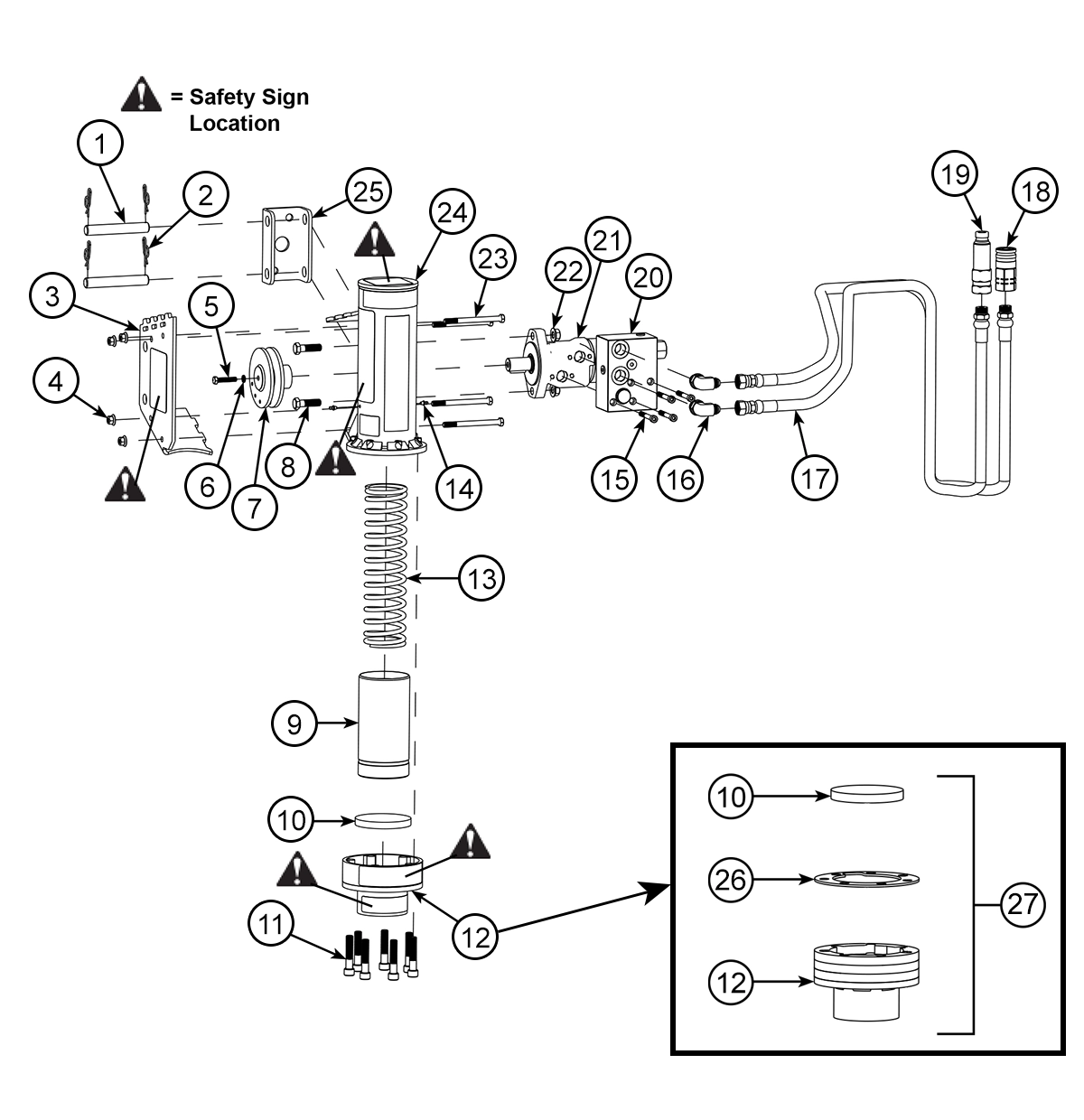

T3 Driver (SN 3210-6539) - Main Assembly
Assembly:
Select plus (+) to zoom in, minus (-) to zoom out, or full-screen button (four outward-pointing arrows) to enlarge the image to full screen.
Prices are shown in USD
| Part | Price | Quantity | |
|---|---|---|---|
|
Pin
21284
|
$9.69 | ||
|
Rue Clip
21078
|
$0.49 | ||
|
Cover Plate
Includes decals & safety signs.
21392S
|
$32.00 | ||
|
Toplock Flange Nut (3/8"-16)
21316
|
$1.02 | ||
|
Hex Bolt (M8 x 1.25 x 40 mm, Gr. 8.8)
21319
|
$1.13 | ||
|
Wedge Lock Washer (5/16")
21376
|
$2.15 | ||
|
Drive Wheel Assembly
21380
|
$118.00 | ||
|
Hex Cap Screw (1/2"-13 x 1.75", Gr. 5)
933
|
$1.33 | ||
|
Weight Assembly
21296 190084
|
$190.00 | ||
|
Strike Plate
21391
|
$23.25 | ||
|
Socket Head Bolt (1/2"-20 x 2.5")
21383
|
$2.48 | ||
|
Foot
Original part 21388 must be replaced with 200290 wear plate kit (required for first replacement). After this update, use replacement foot 200145S for future service.
21388 200145S
|
$136.00 | ||
|
Compression Spring
21323
|
$57.00 | ||
|
Grease Fitting
35220
|
$0.81 | ||
|
Socket Head Cap Screw (M8 x 65mm, Gr. 8)
21379
|
$2.44 | ||
|
Adapter, 90° (#10 ORB M to #8 JIC M)
20034
|
$8.74 | ||
|
1/2" Hose Assembly (#10 ORB M to #8 JIC F Swivel)
21393
|
$76.00 | ||
|
Female Coupler (1/2" flush-face, ISO 16028)
10049
|
$74.00 | ||
|
Male Coupler (1/2" flush-face, ISO 16028)
12108
|
$77.00 | ||
|
Hydraulic Manifold
21378
|
$480.00 | ||
|
Hydraulic Motor
21377
|
$454.00 | ||
|
Hydraulic Motor Seal Kit
Not Pictured
20079
|
$160.00 | ||
|
Toplock Flange Nut (1/2"-13)
6196
|
$1.02 | ||
|
Bolt (3/8"-16 x 4.5", Gr. 5)
21318
|
$1.48 | ||
|
Housing Assembly
Includes decals & safety signs.
21384S
|
$230.00 | ||
|
Mount Bracket
21302
|
$25.00 | ||
|
Wear Plate
Used on units updated with 200290 wear plate kit.
190176
|
$19.20 | ||
|
Wear Plate Kit
Required when replacing original foot 21388. Converts unit to updated design to improve wear resistance. Includes 21391, 200145S, 190176.
200290
|
$149.00 |
