Intimidator Flat Back (SN 1001-5780) - Parts

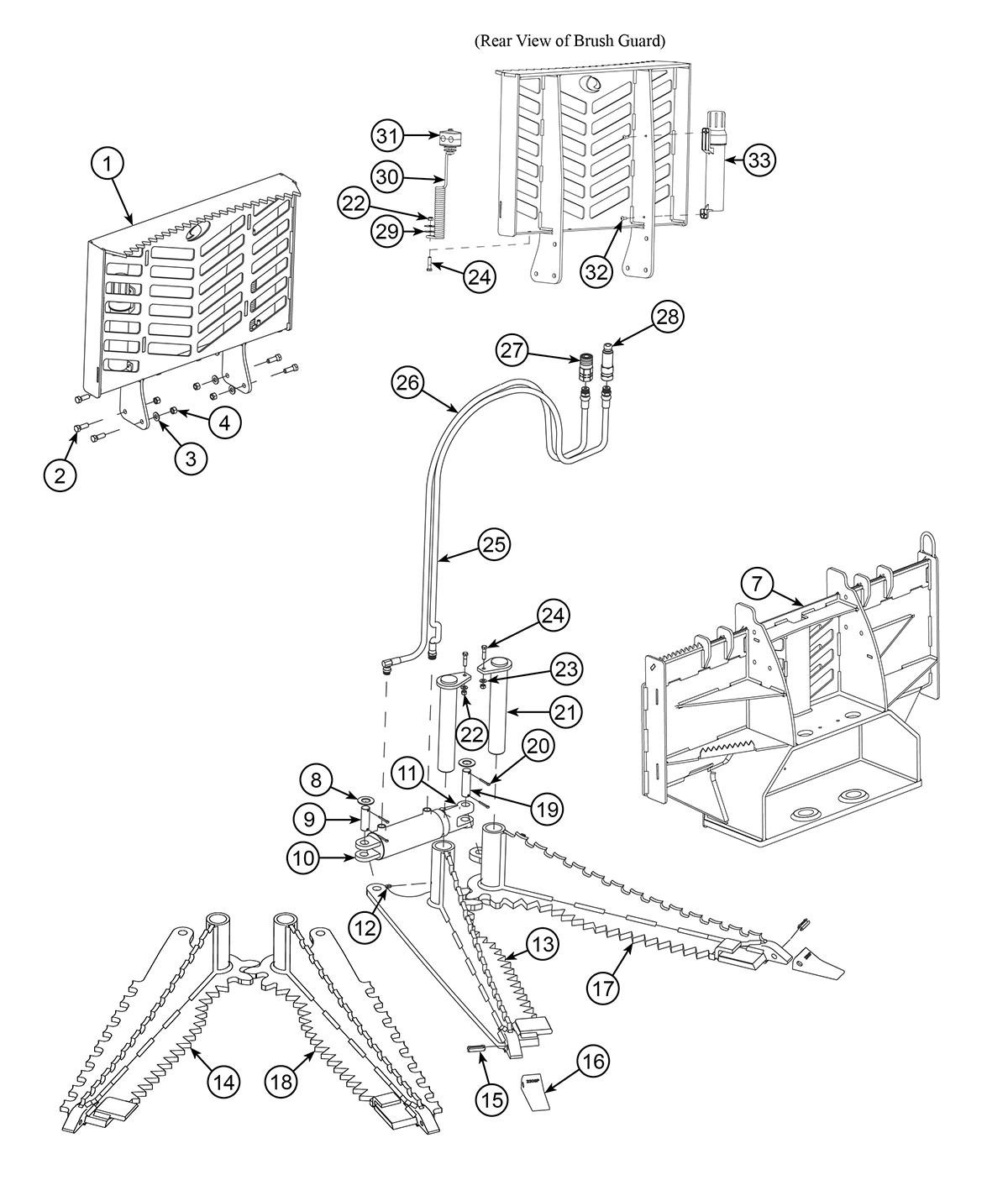

Assembly:
Select plus (+) to zoom in, minus (-) to zoom out, or full-screen button (four outward-pointing arrows) to enlarge the image to full screen.
Prices are shown in USD
| Part | Price | Quantity | |
|---|---|---|---|
|
Euro/Flat Back Brush Guard Assembly
Includes decals, safety signs, and 21259 & 21258
12236
|
$385.00 | ||
|
Hex Cap Screw (1/2"-13 x 1.5", Gr. 5)
12245
|
$1.20 | ||
|
Flat Washer (1/2")
21156
|
$0.20 | ||
|
Toplock Nut (1/2"-13)
10125
|
$0.57 | ||
|
Flat Back Frame Assembly
Includes decals & safety signs. Provide serial number when ordering.
12268 12268S
|
$1,787.00 | ||
|
Flat Washer (1")
1132
|
$0.85 | ||
|
Clevis Pin (Base End)
12242 190125
|
$15.39 | ||
|
Hydraulic Cylinder
Includes 190126
12241
|
$344.00 | ||
|
Cylinder End Clevis
Includes bolt & nut
172910 190126
|
$81.00 | ||
|
Hydraulic Cylinder Seal Kit
Not pictured
172955
|
$93.00 | ||
|
Grease Fitting, 90°
2355
|
$1.42 | ||
|
Right Jaw Assembly
12230
|
$590.00 | ||
|
Right Jaw Assembly, Exterior Saw Teeth
12230T
|
$695.00 | ||
|
Flex Pin
12249
|
$8.98 | ||
|
Excavator Bucket Tooth
12248
|
$28.00 | ||
|
Left Jaw Assembly
12224
|
$590.00 | ||
|
Left Jaw Assembly, Exterior Saw Teeth
12224T
|
$695.00 | ||
|
Pin
12255 192121
|
$0.00 | ||
|
Cotter Pin (1/4" x 1-1/2")
12244 196017
|
$0.73 | ||
|
Pin Assembly
12233
|
$56.75 | ||
|
Toplock Nut (3/8"-16)
10412
|
$0.37 | ||
|
Flat Washer (3/8")
2178
|
$0.13 | ||
|
Hex Cap Screw (3/8"-16 x 1.5", Gr. 5)
12246
|
$0.51 | ||
|
3/8" Hose Assembly (#8 ORB M Swivel to #10 ORB M)
12257
|
$114.00 | ||
|
3/8" Hose Assembly (#8 ORB M 90 Swivel to #10 ORB M)
12258
|
$126.00 | ||
|
Female Coupler (1/2" flush-face, ISO 16028)
10049
|
$74.00 | ||
|
Male Coupler (1/2" flush-face, ISO 16028)
12108
|
$77.00 | ||
|
Washer (13/32" x 1-1/2")
12259
|
$0.77 | ||
|
Hydraulic Hose Spring
12247
|
$29.00 | ||
|
1/2" Hydraulic Hose Clamp Kit
Includes hardware
12251
|
$19.98 | ||
|
Drive Rivet
21259
|
$0.87 | ||
|
Operator’s Manual Canister
21258
|
$11.98 |
