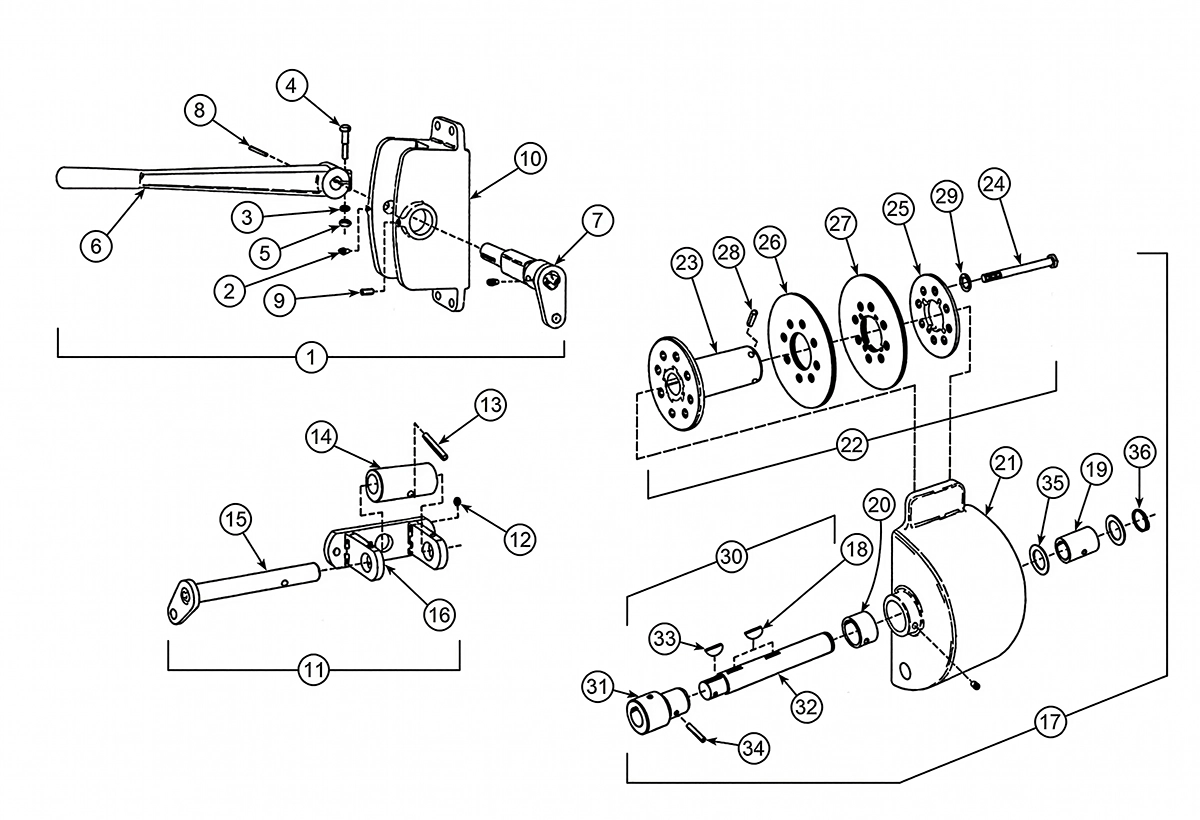

Model BMDH (SN 1001+) - Friction Drive & Control Groups
Assembly:
Select plus (+) to zoom in, minus (-) to zoom out, or full-screen button (four outward-pointing arrows) to enlarge the image to full screen.
Prices are shown in USD
| Part | Price | Quantity | |
|---|---|---|---|
|
Control Housing Group
Includes 617, 847, 2086, 2093, 2307, 2309, 2349, 2483, 2692
2106
|
No Longer Available | ||
|
Grease Fitting
617
|
$0.80 | ||
|
Lock Washer (5/16")
847
|
$0.07 | ||
|
Cap Screw (5/16"-24 x 1.5")
2086
|
$0.35 | ||
|
Nut (5/16")
2093
|
No Longer Available | ||
|
Handle
2307
|
No Longer Available | ||
|
Camshaft Assembly
Includes 617
2309
|
No Longer Available | ||
|
Key (Square 1/8" x 1-1/8")
2349
|
No Longer Available | ||
|
Set Screw (1/4"-20 x .5")
2483
|
$0.45 | ||
|
Housing Assembly
Includes 617
2692
|
No Longer Available | ||
|
Cradle Cam Group
Includes 1516, 2027, 2041, 2158, 2693
2486
|
$339.00 | ||
|
Grease Fitting
1516
|
$0.67 | ||
|
Roll Pin (3/16" x 1")
2027
|
$0.24 | ||
|
Cam
2041
|
$113.00 | ||
|
Shaft
2158
|
No Longer Available | ||
|
Support
Includes 1516
2693
|
No Longer Available | ||
|
Friction Drive Group
Includes 2560, 2052, 2735, 2736, 2739,1516
2741
|
No Longer Available | ||
|
Woodruff Key
2036
|
No Longer Available | ||
|
Bushing
2050
|
No Longer Available | ||
|
Bushing
2051
|
No Longer Available | ||
|
Cradle / Friction Wheel Housing Assembly
Includes 1516, 2050, 2051
2052
|
No Longer Available | ||
|
Friction Wheel Assembly
Indcludes 2541, 2542, 2543, 2544, 2545, 2558, 2559. Must also purchase (21) 2016 Shims found in General Arrangement.
2560
|
$410.00 | ||
|
Friction Wheel Assembly
2541 2560
|
$410.00 | ||
|
Friction Wheel Assembly
2542 2560
|
$410.00 | ||
|
Friction Wheel Assembly
2543 2560
|
$410.00 | ||
|
Friction Wheel Assembly
2544 2560
|
$410.00 | ||
|
Friction Wheel Assembly
2545 2560
|
$410.00 | ||
|
Friction Wheel Assembly
2558 2560
|
$410.00 | ||
|
Friction Wheel Assembly
2559 2560
|
$410.00 |
