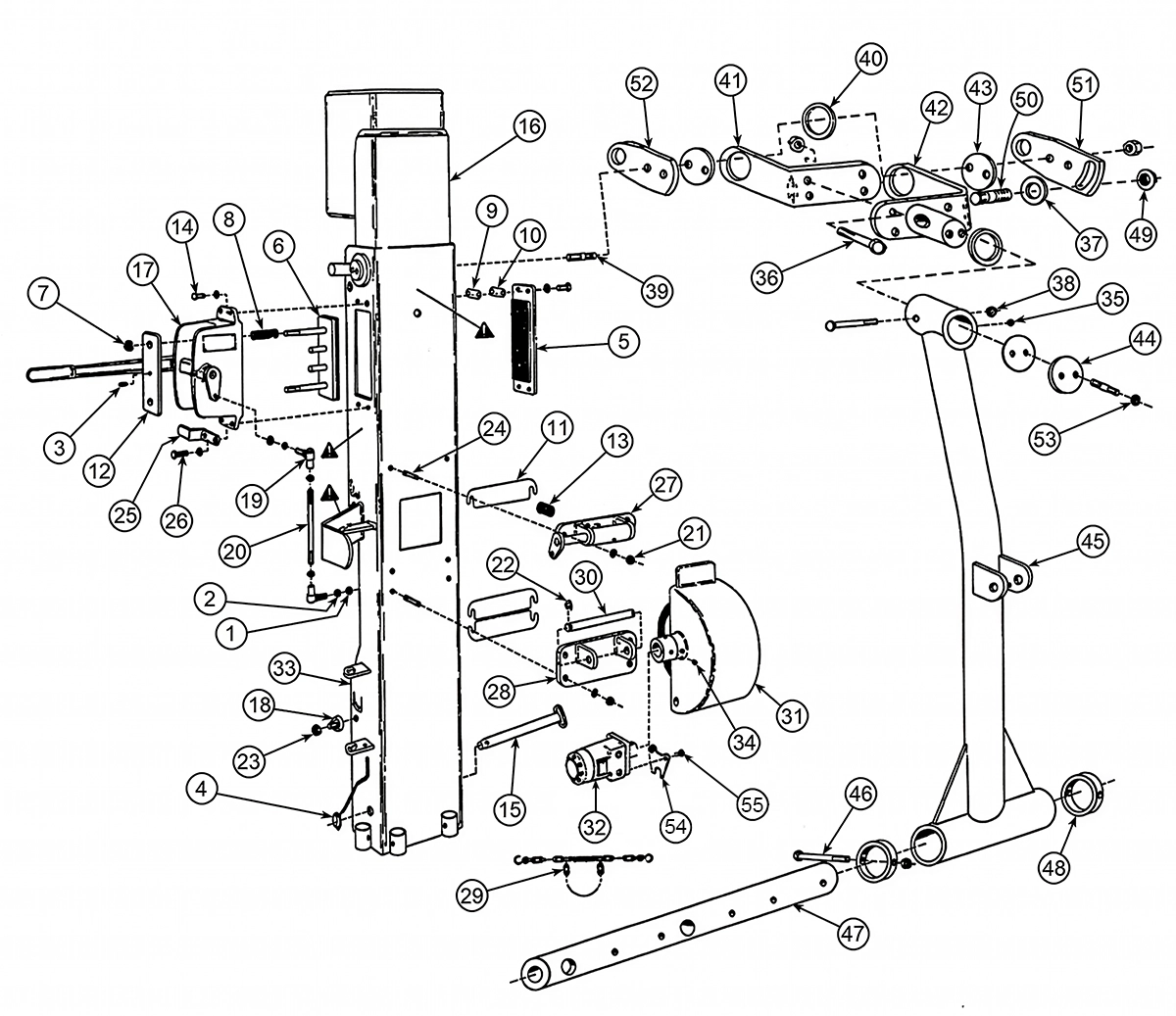

Model BMDH (SN 1001+) - General Arrangement
Assembly:
Select plus (+) to zoom in, minus (-) to zoom out, or full-screen button (four outward-pointing arrows) to enlarge the image to full screen.
Prices are shown in USD
| Part | Price | Quantity | |
|---|---|---|---|
|
Nut (3/8")
975
|
$0.35 | ||
|
Lock Washer (3/8")
976
|
$1.36 | ||
|
Grease Fitting
1516
|
$0.67 | ||
|
Klik Pin (1/4" with Chain)
1601
|
$1.29 | ||
|
Brake Block (Left Side, Stationary)
2007
|
No Longer Available | ||
|
Brake Control Block (Right Side, Movable)
2008
|
No Longer Available | ||
|
Nut (1/2")
2010
|
No Longer Available | ||
|
Spring
2011
|
$37.00 | ||
|
Shim (1/16")
2014
|
$5.48 | ||
|
Shim (1/64")
2015
|
$11.85 | ||
|
Shim
2016
|
$3.92 | ||
|
Release Plate
Includes 1516
2032
|
No Longer Available | ||
|
Spring (Friction Wheel Release)
2037
|
No Longer Available | ||
|
Cap Screw (3/8"-16 x .75")
2064
|
$0.22 | ||
|
Transport Pin
2071
|
No Longer Available | ||
|
Drive Channel
2092
|
No Longer Available | ||
|
Control Housing Group
2106
|
No Longer Available | ||
|
Bearing Assembly
2156
|
No Longer Available | ||
|
Ball Joint
2157
|
$21.50 | ||
|
Control Rod
2163
|
No Longer Available | ||
|
Nut (3/8")
2168
|
$0.13 | ||
|
Retaining Ring
2172
|
$0.40 | ||
|
Nut (5/8")
2176
|
$0.74 | ||
|
Stud (3/8"-16 x 1.75")
2301
|
No Longer Available | ||
|
Stop - Control Handle
2411
|
No Longer Available | ||
|
Cap Screw (3/8"-16 x 1.125", Gr. 5)
2412
|
No Longer Available | ||
|
Cradle Cam Group
2486
|
$339.00 | ||
|
Cradle Hinge Assembly
2493
|
$120.00 | ||
|
Control Lever Tie Chain Assembly
2729
|
No Longer Available | ||
|
Hinge Pin
2738
|
No Longer Available | ||
|
Friction Drive Group
2741
|
No Longer Available | ||
|
Hydraulic Motor
2936
|
No Longer Available | ||
|
Guide Channel
3019
|
No Longer Available | ||
|
Socket Head Bolt (5/8"-18 x .375")
7821
|
$0.62 | ||
|
Grease Fitting
280
|
$0.73 | ||
|
Hex Cap Screw (1/2"-13 x 1.75", Gr. 5)
933
|
$1.33 | ||
|
Flat Washer (5/8")
1054
|
$0.30 | ||
|
Toplock Nut (3/8"-16)
2805 10412
|
$0.37 | ||
|
Stud
3023
|
$8.19 | ||
|
Washer (2-1/8")
3024
|
No Longer Available | ||
|
Inner Yoke Half
3025
|
No Longer Available | ||
|
Yoke Half & Stud Assembly
3026 3090
|
$243.00 | ||
|
Washer
3029
|
No Longer Available | ||
|
Plate
3030
|
No Longer Available | ||
|
Boom Assembly
3033
|
No Longer Available | ||
|
Bolt (3/8"-16 x 3.5", Gr. 8)
3041
|
$1.83 | ||
|
Hitch Bar
3042
|
No Longer Available | ||
|
Retaining Collar
3043
|
No Longer Available | ||
|
Nut (5/8")
3092
|
$1.98 | ||
|
Stud (5/8"-11 x 1.75")
3093
|
No Longer Available | ||
|
Left-hand Brake Plate
3095
|
$58.50 | ||
|
Right-hand Brake Plate
3096
|
$42.75 | ||
|
Nut (1/2")
8095
|
$4.34 | ||
|
Torque Plate
2737
|
No Longer Available | ||
|
Bolt (3/8"-16 x .875", Gr. 5)
2339
|
$0.59 |
