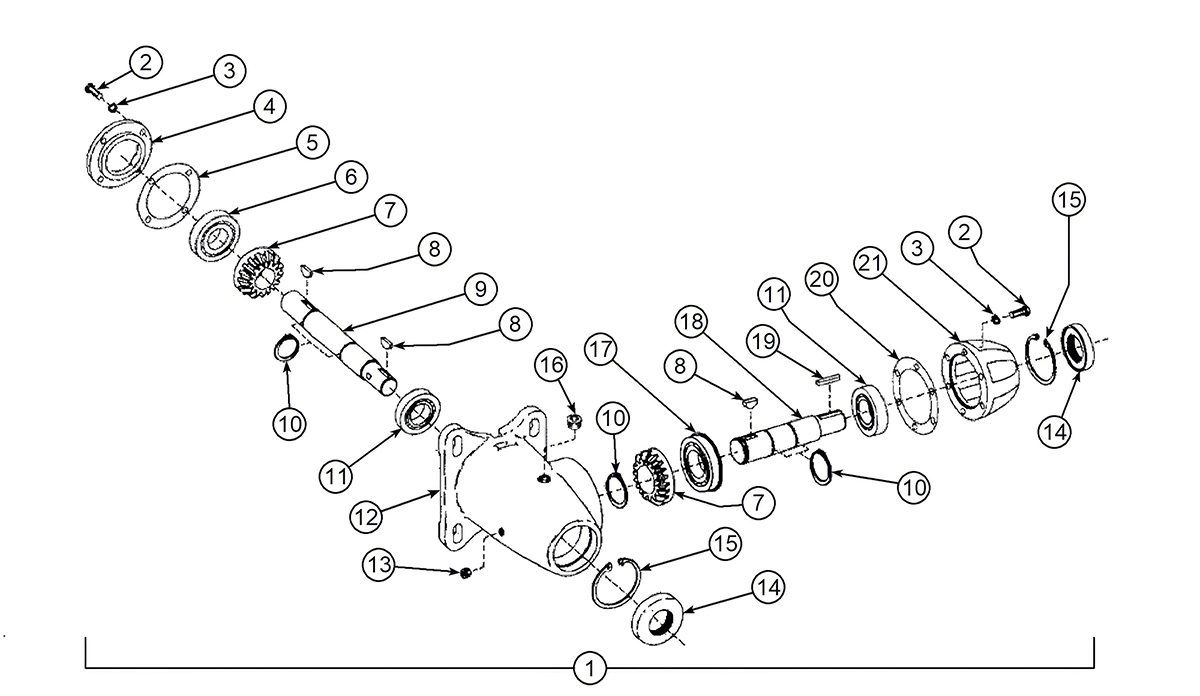

Model MD6 (SN 1001+) - Bevel Gear Drive
Assembly:
Select plus (+) to zoom in, minus (-) to zoom out, or full-screen button (four outward-pointing arrows) to enlarge the image to full screen.
Prices are shown in USD
| Part | Price | Quantity | |
|---|---|---|---|
|
Gearbox Assembly
2454
|
No Longer Available | ||
|
Hex Cap Screw (5/16"-18 x .875", Gr. 5)
2450
|
$0.38 | ||
|
Lock Washer (5/16")
847
|
$0.07 | ||
|
Bearing Retaining Cap
2365
|
$41.00 | ||
|
Input Shaft Shim
2438
|
$1.07 | ||
|
Input Shaft Inner Bearing
2445
|
No Longer Available | ||
|
Gear
2433
|
$61.00 | ||
|
Woodruff Key
2226
|
$0.82 | ||
|
Input Shaft
Includes 2448
2376
|
No Longer Available | ||
|
Retaining Ring
2448
|
No Longer Available | ||
|
Outer Bearing
2444
|
No Longer Available | ||
|
Gear Housing
2293
|
No Longer Available | ||
|
Pipe Plug (1/8")
2452
|
No Longer Available | ||
|
Oil Seal
2449
|
No Longer Available | ||
|
Retaining Ring
2447
|
No Longer Available | ||
|
Pipe Plug (3/8") (Fill)
1113
|
$1.57 | ||
|
Output Shaft Inner Bearing
2446
|
No Longer Available | ||
|
Output Shaft
Includes 2448
2377
|
No Longer Available | ||
|
Key (Square 3/16" x 1")
2034
|
No Longer Available | ||
|
Output Shaft Shim
2441
|
No Longer Available | ||
|
Output Shaft Housing
2364
|
No Longer Available |
