Model MD6 (SN 1001+) - Universal Drives

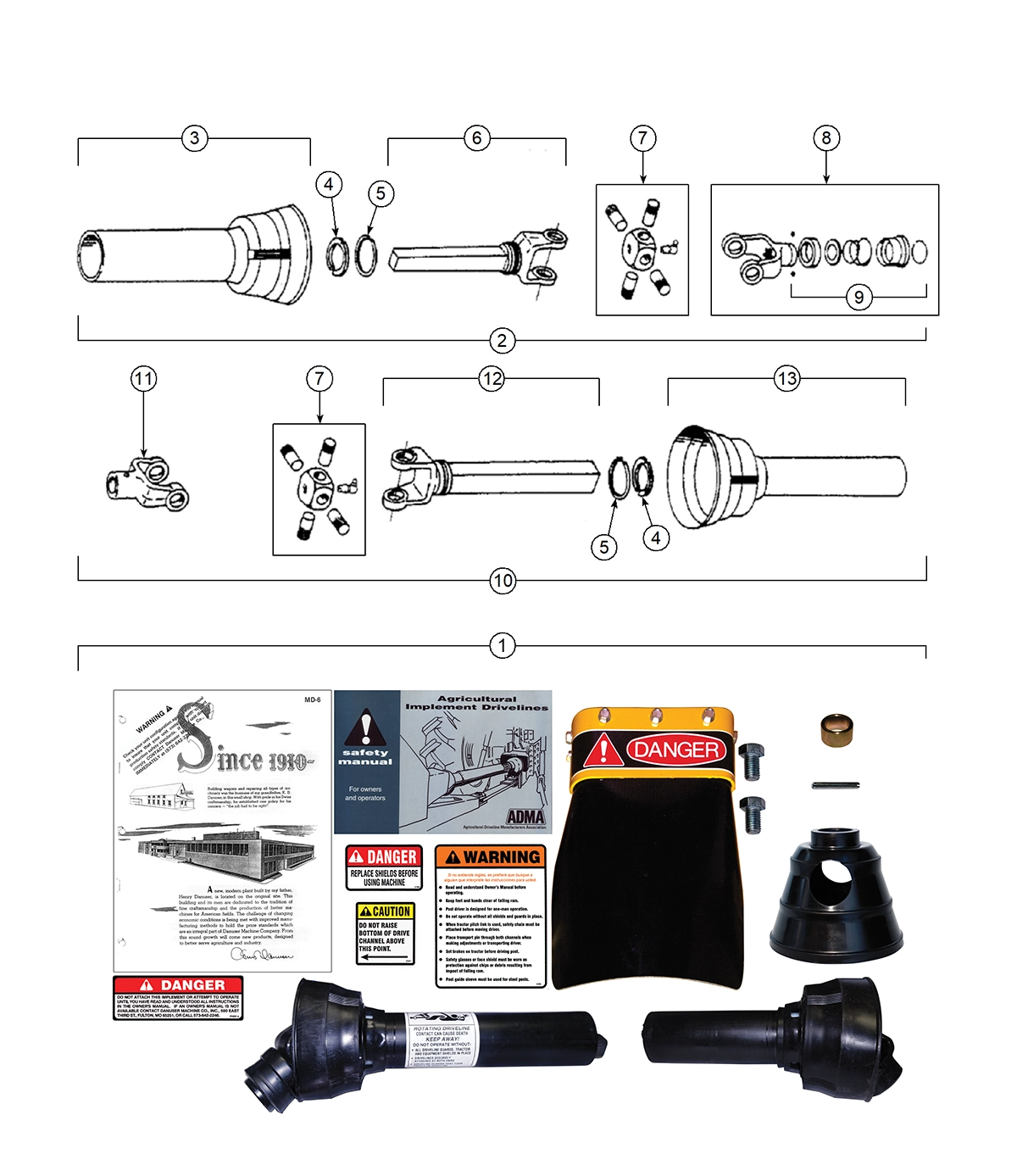

Assembly:
Determine the Conversion Kit You Need
Measure from the tractor PTO to the digger’s input shaft, then subtract 6‑1/2 inches.
Match your final number to the correct kit in the table below.
Select plus (+) to zoom in, minus (-) to zoom out, or full-screen button (four outward-pointing arrows) to enlarge the image to full screen.
Prices are shown in USD
| Part | Price | Quantity | |
|---|---|---|---|
|
Long Driveline Conversion Kit
Measurement Range: Above 11-3/8" up to 14-3/4"
3209
|
$381.00 | ||
|
Medium Driveline Conversion Kit
Measurement Range: 9-3/8" to 11-3/8"
3210
|
$375.00 | ||
|
Short Driveline Conversion Kit
Measurement Range: 9-3/8" or less
3211
|
$369.00 | ||
|
Short Driveline Conversion Kit
3195 3211
|
$369.00 | ||
|
Medium Driveline Conversion Kit
3203 3210
|
$375.00 | ||
|
Long Driveline Conversion Kit
3206 3209
|
$381.00 | ||
|
Short Driveline Conversion Kit
3200 3211
|
$369.00 | ||
|
Nylon Bearing
6068
|
$14.13 | ||
|
Driveline Guard Kit
6067 20090
|
$91.00 | ||
|
Short Driveline Conversion Kit
3201 3211
|
$369.00 | ||
|
Driveline - Telescoping Assembly with Guard
6065 6807
|
$517.00 | ||
|
Driveline - Telescoping Assembly with Guard
6807
|
$517.00 | ||
|
Joint & Shaft Half with Guard Set
6130 20084
|
$632.00 | ||
|
Spring-Lok Repair Kit
6131
|
$51.00 | ||
|
Complete Driver Half Driveline
Replaced by 3209, 3210, or 3211
3194
|
No Longer Available | ||
|
End Yoke
Replaced by 3209, 3210, or 3211
3197
|
No Longer Available | ||
|
Yoke & Tube
Replaced by 3209, 3210, or 3211
3198
|
No Longer Available | ||
|
Inner Shield
Replaced by 3209, 3210, or 3211
3199
|
No Longer Available |
