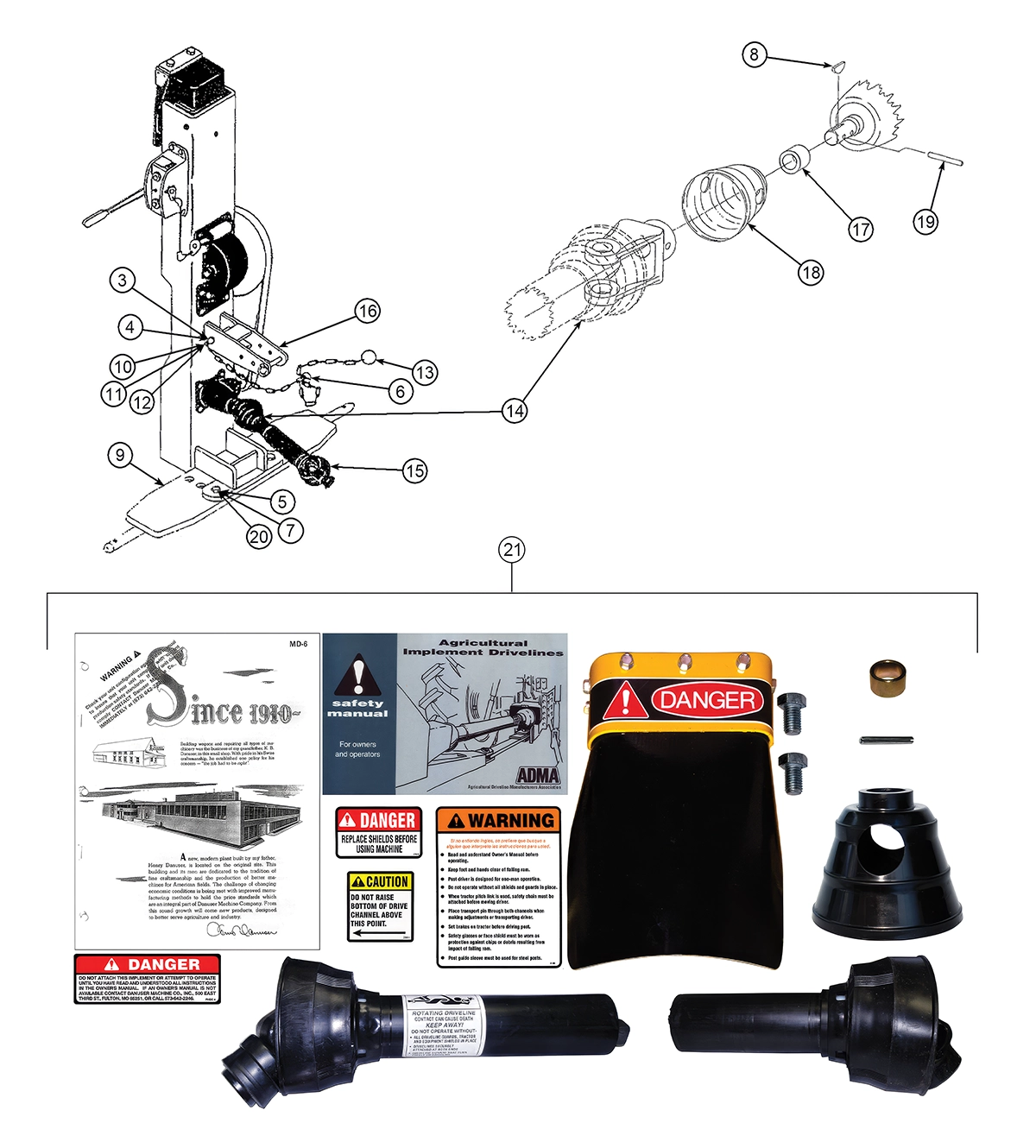

Model MD6 (SN 1001+) - Universal Adapter Kits
Assembly:
Determine the Conversion Kit You Need
Measure from the tractor PTO to the digger’s input shaft, then subtract 6‑1/2 inches.
Match your final number to the correct kit in the table below.
Select plus (+) to zoom in, minus (-) to zoom out, or full-screen button (four outward-pointing arrows) to enlarge the image to full screen.
Prices are shown in USD
| Part | Price | Quantity | |
|---|---|---|---|
|
Adapter Kit - CAT. I
3181
|
No Longer Available | ||
|
Adapter Kit - CAT. II
3182
|
No Longer Available | ||
|
Cotter Pin (3/16" x 1-1/4")
328
|
No Longer Available | ||
|
Clevis Pin (3/4" x 2-3/4")
505
|
No Longer Available | ||
|
Retaining Lock Washer (3/4")
823
|
$0.27 | ||
|
Klik Pin Assembly
1533
|
$1.51 | ||
|
Hex Nut (3/4"-10)
1916
|
No Longer Available | ||
|
Woodruff Key
2226
|
$0.82 | ||
|
Hitch Bar Group - CAT. I
2274
|
No Longer Available | ||
|
Hitch Bar Group - CAT. II
2865
|
No Longer Available | ||
|
Clevis
2724
|
No Longer Available | ||
|
Pin (3/8" x 1-1/2")
2725
|
$6.75 | ||
|
Cotter Pin (1/8" x 3/4")
2726
|
$0.41 | ||
|
Safety Chain Assembly
2732
|
No Longer Available | ||
|
Complete Driver Half Driveline
Replaced by 3209, 3210, or 3211
3194
|
No Longer Available | ||
|
Medium Driveline Conversion Kit
3203 3210
|
$375.00 | ||
|
Extension Assembly - CAT. I
3180
|
No Longer Available | ||
|
Extension Assembly - CAT. II
3179
|
No Longer Available | ||
|
Sleeve
3202
|
$44.00 | ||
|
Pinion Guard
6057
|
$4.24 | ||
|
Roll Pin (1/4" x 2")
7898
|
$0.39 | ||
|
Bolt (3/4"-10 x 2.25", Gr. 8)
9037
|
$4.58 | ||
|
Long Driveline Conversion Kit
3209
|
$381.00 | ||
|
Medium Driveline Conversion Kit
3210
|
$375.00 | ||
|
Short Driveline Conversion Kit
3211
|
$369.00 |
